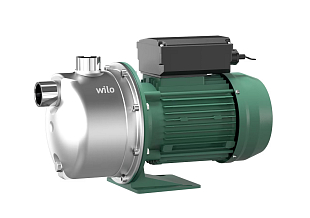

Self-priming pump Wilo WJ 202-EM-2 (4262912)

Self-priming pump Wilo WJ 202-EM-2 (4262912)

WILO
  • Product code: 4262912
  • EAN : 4062679329093
  • Manufacturer code: 4262912
  • Warranty: 2 years

The Jet WJ 202 self-priming pump with single-phase 230 V power supply is designed for a wide range of applications, including water supply, irrigation, and pressure boosting. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx:
    3.3 workdays € 12,95
    Bpost HD (Home Delivery):
    3.2 workdays € 14,27
    BPost - PP (Pick-up Point):
    3.1 workdays € 13,78
    FedEx Priority:
    1.7 workdays € 75,38
    DHL Express:
    1.1 workdays € 81,07

    DHL Express: 1.1 workdays, € 81,07

  • In stock 1 pcs

List price € 234,74
Price excluding VAT € 143,56
Price with VAT 21 % € 173,71
+

Parameters and catalogs

Connection size 1"
IP Rating IP 44
Medium Temperature 5...35 °C
Power Supply 230 VAC
Pump head 35 m
Suction height 8 m
Weight 10.35 kg

Data sheet download

Download PDF

The self-priming pump with single-phase 230 V power supply is designed for a wide range of applications, including water supply, irrigation, and pressure boosting. Thanks to its robust stainless steel construction and high-quality materials, it is ideal for use in demanding conditions.

Technical Specifications

  • Maximum operating pressure: 6 bar
  • Medium temperature: 5...35°C
  • Ambient temperature: -15...40°C
  • Power supply: 1~230 V, 50 Hz
  • Voltage tolerance: ±6 %
  • Rated motor power: 0.55 kW
  • Rated current: 4 A
  • Rated speed: 2900 1/min
  • Suction height: 8 m
  • Pump head: 35 m

Materials

  • Pump casing: Stainless steel
  • Shaft: Stainless steel
  • Shaft seal: CVPFF
  • Seal material: NBR
  • Impeller: Stainless steel

Installation Dimensions

  • Pipe connection on suction side: DNs G 1
  • Pipe connection on discharge side: DNd G 1
