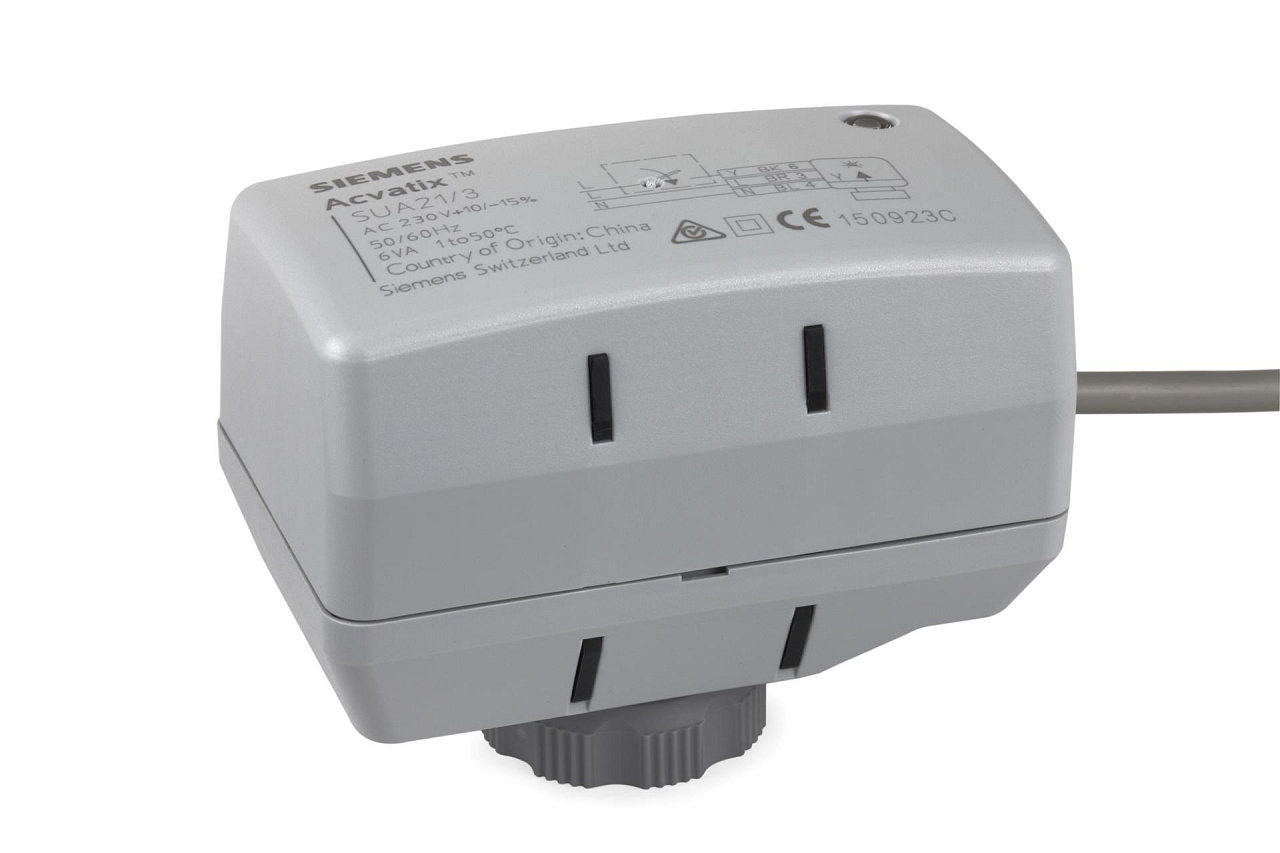

Siemens Actuator SUA21/3

Siemens Actuator SUA21/3

Product code: SUA21/3
EAN : 7612914106100
Manufacturer code: SUA21/3
Warranty: 2 years

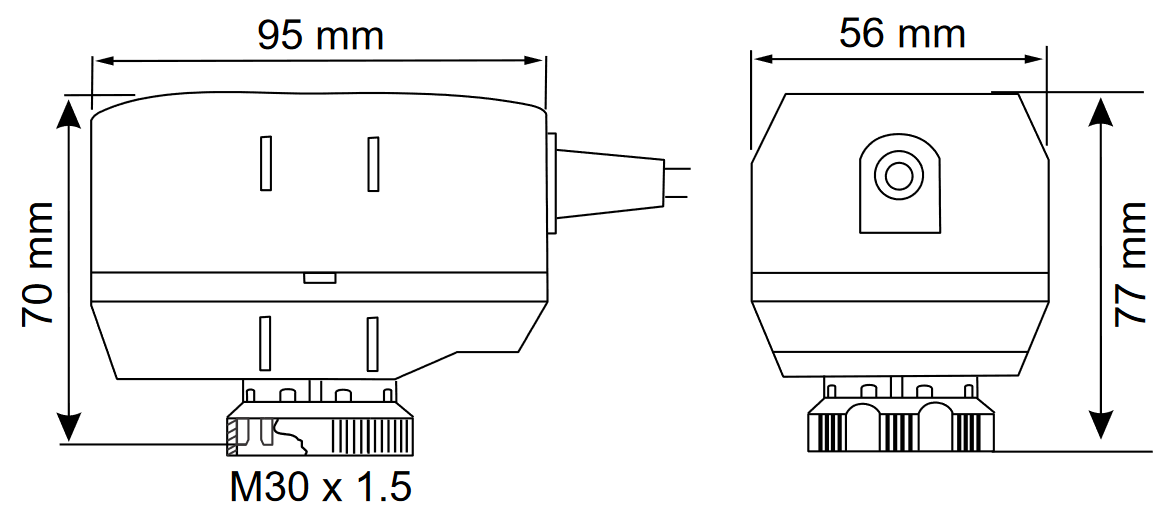

Electromotor actuator SUA21/3 for zone valves with 2-point control and 230 VAC power supply. Connection size M30x1.5. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
3.2 workdays € 7,02

Bpost HD (Home Delivery):
3.1 workdays € 10,64

BPost - PP (Pick-up Point):
3.1 workdays € 9,91

FedEx Priority:
1.7 workdays € 12,71

DHL Express:
1.1 workdays € 16,94

DHL Express: 1.1 workdays, € 16,94
More than 5 pcs in stock

Parameters and catalogs

Auxiliary contact	0...5 V
Cable length	0.8 m
Control	-40...180 °C
Emergency function	0...25 mbar
IP Rating	IP 40
Lift	2.5 mm
Lifting force	170 N
Medium Temperature	110 °C
Power Supply	230 VAC, 230 VAC
Weight	0.33 kg

Catalog sheet download

Download PDF

Declaration of conformity download

Download PDF

Assembly instructions download

Download PDF

The SUA21/3 actuator is designed for regulating hot/cold water in heating, air conditioning, and ventilation applications. It forms an ideal combination with Siemens valves VVI46... and VXI46..., which are controlled by a 2-position SPST signal received from a heating controller (room thermostat). The actuator body features an LED indication of the spindle position. The actuator can be connected in parallel with other actuators.

The actuator has a control force of 170 N and its maximum stroke is limited by the valve seat. In both end positions, the actuator has no power consumption. It is powered by an integrated cable with a length of 0.8 m.
