Siemens Kotelník 2 Fault Signalling Set in PSKVR-MB Cabinet is a system of high-quality components from leading manufacturers of electrical components. The set is designed to ensure the complete safety of boiler operations over 100 kW according to the standard ČSN 07 0703. The device allows monitoring of various parameters of the heating system, ensuring timely detection of potential problems and safe operation.

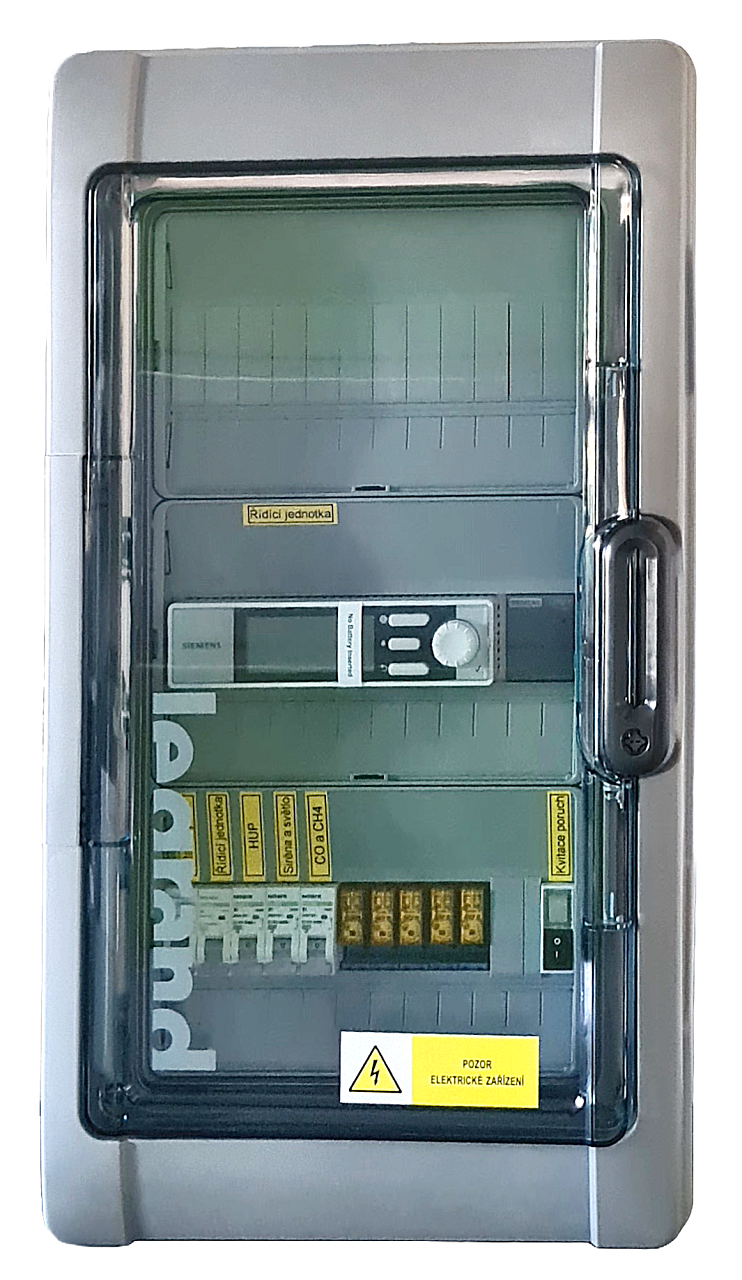

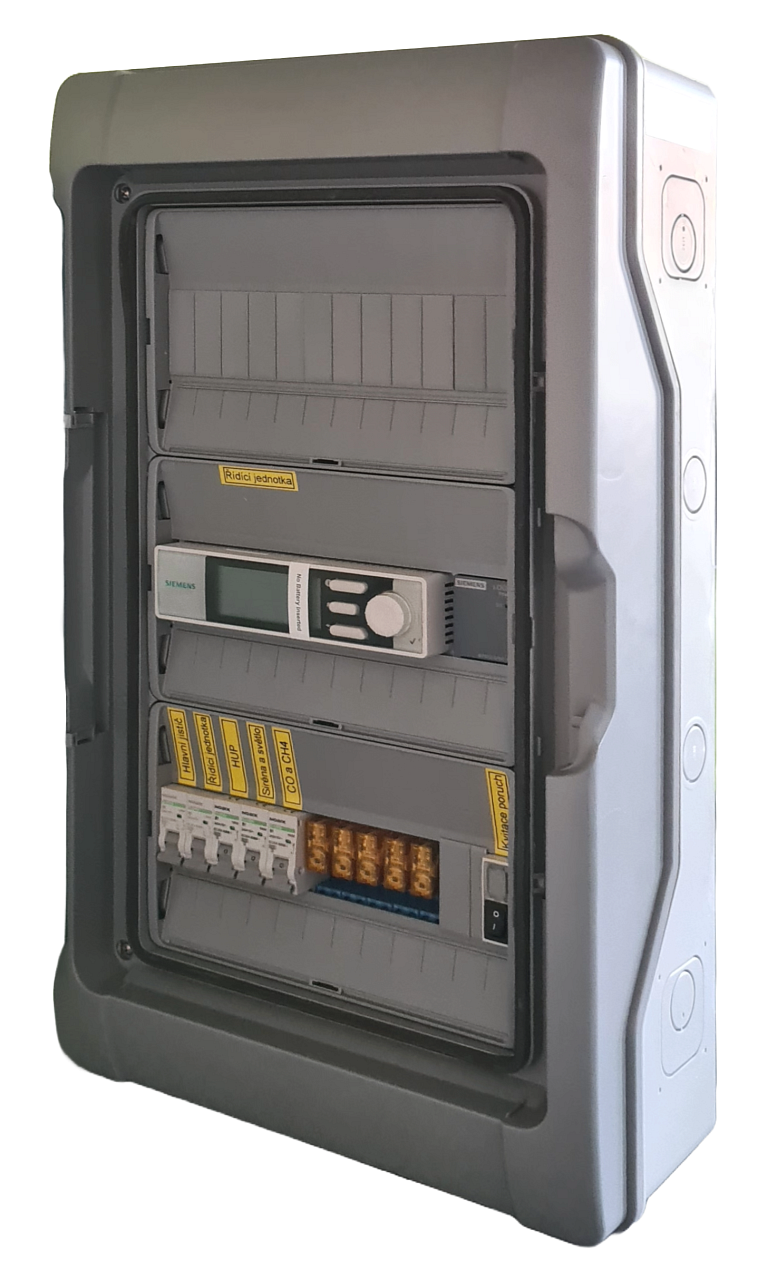

The cabinet is fully equipped with high-quality Noark circuit breakers, a power supply, relay modules, and its own Siemens Kotelnik 2 fault signalling. Of course, there is also an acknowledgment button. Everything is housed in a Legrand cabinet.

Main Advantages

• Plug&Play solution - just add cables and a Carbon Monoxide detector
• Speeds up installation by several hours
• No need for sourcing and inventing
• Durable Plexo distribution box by Legrand
• Everything is simply described directly on the individual components
• Two variants - with/without the option to integrate heat meter readings
• Individual sensors already included in the delivery

Kotelník 2 builds on the success of the first series and simultaneously offers new features and expanded configuration options. The fault signalling now offers recording of measured values (such as heat meters) and their remote management.

Main Features of Siemens Kotelnik Signalling

• 15 monitored states and parameters

• multifunctional input and output selection

• system filling and draining function

• entry to the machine room

• number of power outages

• backup and restore from SD card

• RS-485 interface for Modbus RTU, Modbus TCP

• connection via IC Cloud

• sending alarm emails

• sending SMS via GSM module

• connection of heat meters via M-Bus communication

Contents of the PSKVR-MB Set

• Siemens Kotelnik 2 fault signalling in an equipped cabinet
• M-Bus communication module
• Room temperature sensor
• System temperature sensor
• Flooding sensor
• Gas leak detector
• System pressure sensor
• Set of cable glands

Monitored Parameters

Remote Heat Reading

The PSKVR-MB cabinet variant is equipped with an additional Siemens M-BUS-KOTELNIK module. The module opens up new possibilities. With the M-Bus module, you can connect up to 6 heat or energy meters. It is necessary to adhere to cabling principles for M-Bus communication. The individual connected meters will be displayed in the Siemens IC Cloud. According to the amendment to Act No. 406/2000 Coll. on energy management, all heat meters, water meters, and other measuring devices installed from 1 January 2022 must be remotely readable.

Access via Siemens IC Cloud

With Climatix IC, you can gain a decisive advantage in managing HVAC equipment and become a leader in digital services. Siemens provides the first two years of cloud service for free.

Remote Monitoring

Climatix IC is a scalable solution for remote monitoring. Its remote diagnostic tools allow monitoring technicians to gain insight into any issues and ensure that service arrives on-site with the necessary tools and components to resolve the problem.

Improved Performance

Data analysis stored in the cloud opens the door for the equipment to be continuously updated throughout its lifecycle, always providing optimal performance. Additionally, predictive maintenance tools can reduce equipment wear, significantly decreasing the number of unplanned interventions.

Device Reliability

Intelligent diagnostic tools allow capturing problems before they become critical, setting new standards in device reliability and creating long-term value for your brand.

Open Platform

Climatix IC is an open platform that allows easy integration with existing or new business applications through our RESTful API services.
