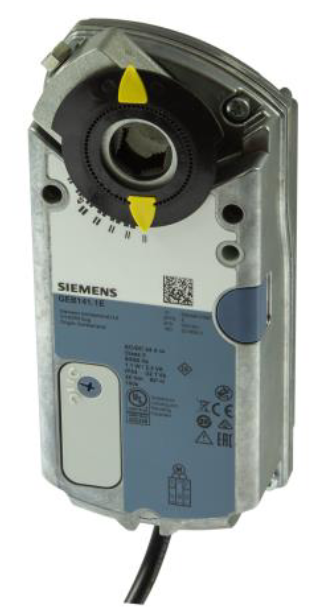

Actuator for controlling air handling dampers up to a size of approximately 4 m². The actuator is used for controlling air handling dampers in HVAC and air conditioning systems. The operating range of the actuator is mechanically adjustable between 0-90°C. The direction of rotation can be left or right (depending on the electrical control). The damper position is indicated by a position indicator located on the damper shaft collar.

Features:

• Power supply 230 VAC
• 2-point, 3-point control
• Rotation angle 90 degrees
• Torque 5 Nm, damper size approximately 4 m²
• Adjustment time 150 s
• Adjustable direction of rotation, IP54 protection
• Dimensions 192 mm (L) x 82 mm (W) x 63 mm (H)
• 2 auxiliary contacts
