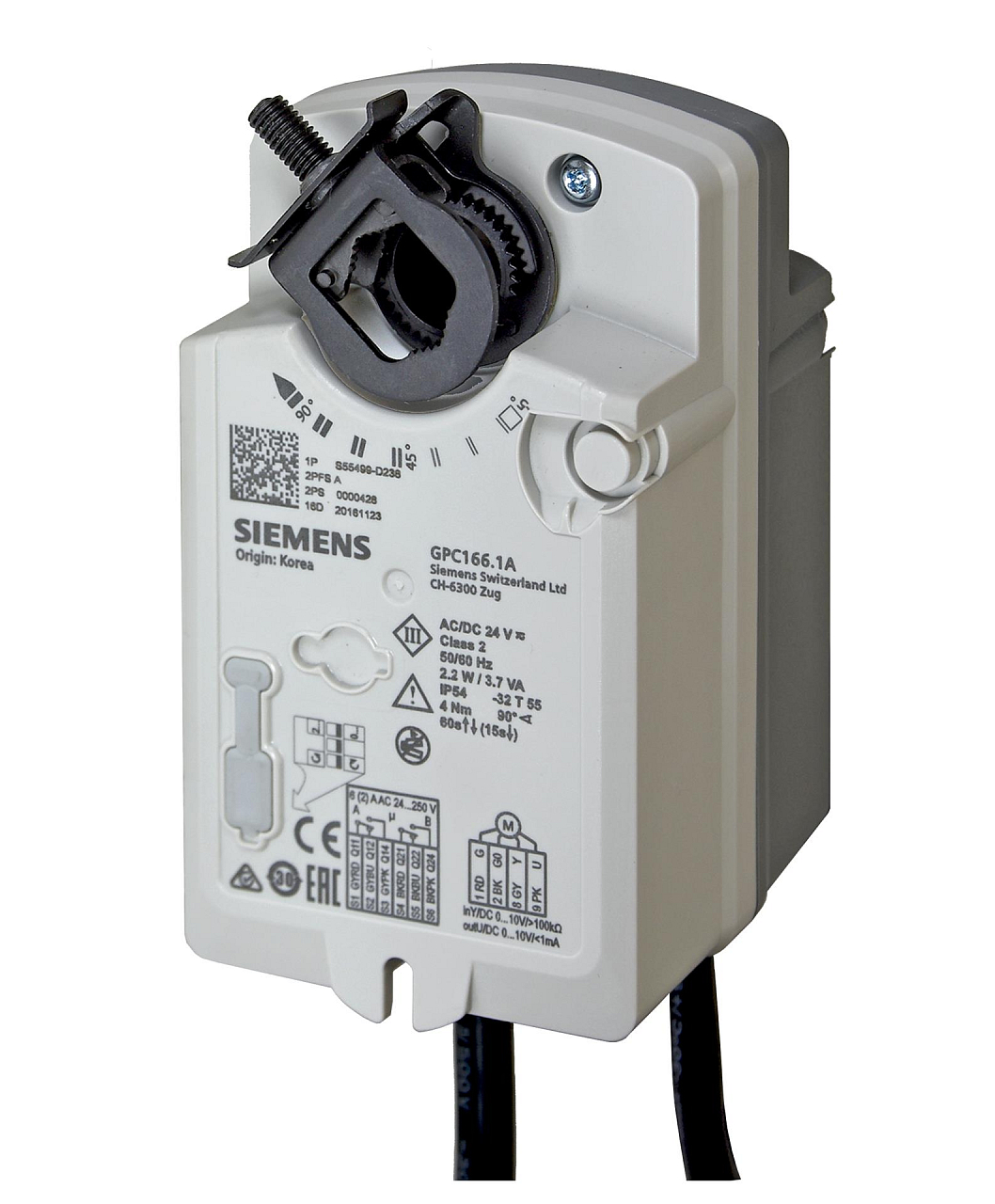

Rotary actuator for controlling air handling dampers with fail-safe function in case of power failure. Designed for use in ventilation and air conditioning applications to regulate air flow through ductwork. The fail-safe function is ensured by a return spring which is constantly under tension. In the event of a power failure, the spring automatically resets the actuator to a safe position.

Features:

• torque 4 Nm
• damper size approx. 0.6 m²,
• rotation angle 90 degrees
• adjustment time 60 s
• spring closure 15 s
• continuous control 0...10 V
• 2 auxiliary contacts
• protection class IP54
• dimensions 123.8 mm (l) x 72 mm (w) x 62.5 mm (h)

Advantages:

• fail-safe return spring function
• reliable motors handling any load
• overload resistant
• does not require end position switch
• maintenance-free
• quiet operation
• includes mounting bracket
• mechanical position indicator
