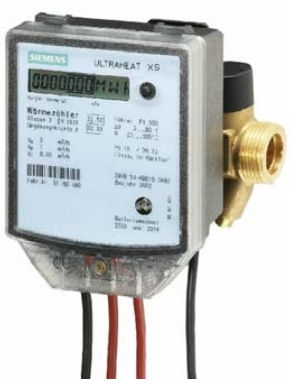

The ULTRAHEAT XS ultrasonic heat meter is used for measuring thermal energy consumption, particularly in central heating systems where energy is supplied to multiple users, such as apartment buildings and office complexes. Not suitable for water-glycol systems!

Application:

• in offices, apartment buildings, and administrative buildings

Features:

• any installation position in return or supply pipe
• storage of consumption values on a specified day
• 15 monthly values
• self-diagnosis with error indication
• wear-free - no moving parts

Technical data:

• DN 25
• max. flow rate 2.5 m3/h
• construction length 130mm
• battery life approx. 6 years
• protection class IP 54
• supplied incl. battery and temperature sensors 27.5mm, M10x1, cable 1.5m

Detailed technical information can be found in the attached data sheet.
