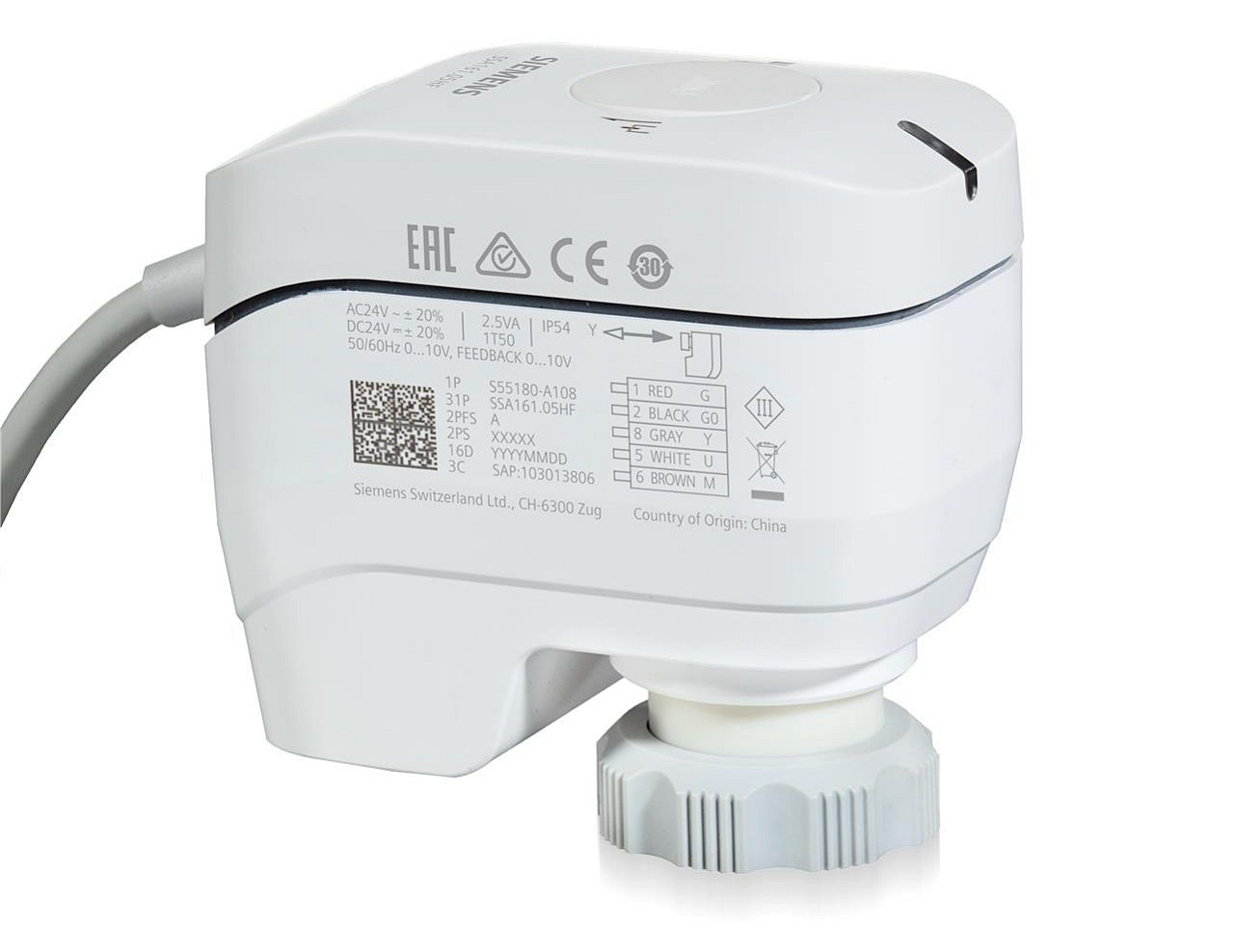

Siemens SSA151.05HF linear actuator for radiator heating, VAV systems, fan coil applications, and ceiling cooling. More information
Out of stock - can be requested
| Cable length | 1.5 m |
| Emergency function | 0...25 mbar |
| Lift | 1.2...6.5 mm |
| Power Supply | 24 VDC, 24 VAC |
| Weight | 0.22 kg |
Assembly instructions download
Download PDF
Catalog sheet eng download
Download PDFThe SSA151.05HF electric motor actuator is suitable for radiator valves (VEN, VDN, VUN, M30x1.5 from other manufacturers), combined PICV valves (VPP46.., VPI46..), MiniCombi valves (VPD, VPE), and small ball valves (VD1..CLC).
It is applicable in radiator heating systems, ceiling cooling, VAV, and fan coil applications.
The actuator body features LED position and movement indication. One diode can light up either green or red. A flashing green light indicates self-calibration or actuator operation, while a steady light indicates that the actuator has reached the end position and will turn off after a few seconds. A red light indicates an error and lights up constantly. Alternating flashing of green and red lights indicates manual control.
Features:
