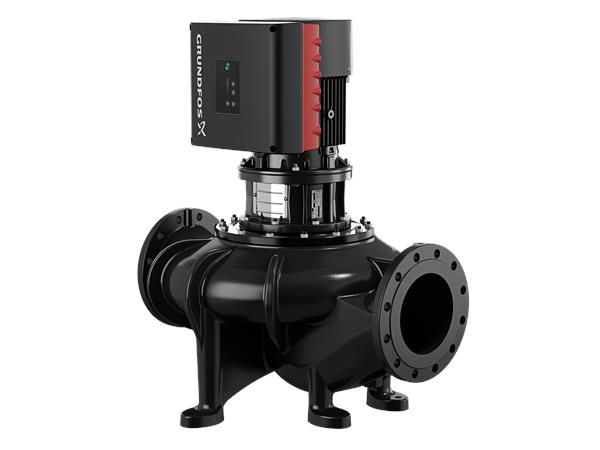

Single-stage dry-running pump Grundfos TPE 125-95/4 A-F-A-BQQE-KDA in an in-line design with MGE motor More information
Out of stock - can be requested
| Building length | 620 mm |
| Connection Type | Flange |
| Power Supply | 230 VAC |
| Pressure | 16 bar |
| Pump connection size | DN 125 |
| Pump flow rate | 178 m3/h |
| Pump head | 9.5 m |
| Weight | 144.00 kg |
Data sheet download
Download PDFSingle-stage dry-running pump with suction and discharge ports of the same diameters on one axis. The pump features a removable top construction "top-pull-out" (motor, pump head, and impeller) which can be removed for maintenance or service, while the pump body remains attached to the piping.
The pump is equipped with an unbalanced seal with a rubber bellows. The motor includes a frequency converter and a PI controller in the motor terminal box. This allows for smooth regulation of the motor speed, thereby adjusting its performance to the given operating conditions. The pump is installed with a differential pressure sensor.
The nominal data of the pump are given at 1460 rpm.
