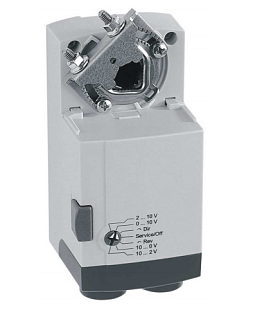

SmartAct Damper Actuator, Honeywell N10230-2POS, 10Nm, 230VAC

SmartAct Damper Actuator, Honeywell N10230-2POS, 10Nm, 230VAC

SmartAct Damper Actuator, Honeywell N10230-2POS, 10Nm, 230VAC

HONEYWELL
  • Product code: N10230-2POS
  • EAN : 4024627146404
  • Manufacturer code: N10230-2POS
  • Warranty: 2 years

Honeywell Smart Act N10230-2POS damper actuator without return spring for continuous control or 2-point regulation. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx:
    3.3 workdays € 7,02
    Bpost HD (Home Delivery):
    3.2 workdays € 10,64
    BPost - PP (Pick-up Point):
    3.1 workdays € 9,91
    FedEx Priority:
    1.7 workdays € 12,71
    DHL Express:
    1.1 workdays € 16,94

    DHL Express: 1.1 workdays, € 16,94

  • In stock 3 pcs

List price € 262,58
Price excluding VAT € 173,61
Price with VAT 21 % € 210,07
− +

Trustpilot

Parameters and catalogs

Control -40...180 °C
Damper size 2 m²
Emergency function 0...25 mbar
IP Rating IP 54
Power Supply 230 VAC
Setup time 140 s
Torque 10 Nm
Weight 0.69 kg

Catalog sheet download

Download PDF

Honeywell Smart Act N10230-2POS damper actuator without return spring for continuous control or 2-point regulation.

The damper actuator allows regulation for:

  • VAV units
  • Air handling dampers
  • Ventilation dampers, louvers

Features:

  • Manual adjustment (thanks to the clutch)
  • End position setting - mechanically
  • Removable cover for direct connection
  • Installation possible in any position
  • Switch between continuous or 3/2-point regulation

Device description:

1) Universal shaft adapter

2) Mechanical stops

3) Clutch button

4) Mode selector

5) Removable cover

6) Mounting bracket











Functional modes:

Using the Mode Selector, you can set the actuator to one of 3 modes:

  • 2-point mode
  • Service / Off
2-point mode

Service / Off

Rotation setting:

Using two adjustable stops, you can set the rotation angle as needed. (Mechanical stops must be firmly and securely fastened)

For tight closure of the dampers, the shaft adapter has a total rotation of up to 95°.

Dimensions:

(Dimensions are in mm)
