Solenoid Valve for Underwater Applications TORK T-SW 105 DN 25, 12 VDC

2 variants

Compare
Print
Send to e-mail

Send product by e-mail:Solenoid Valve for Underwater Applications TORK T-SW 105 DN 25, 12 VDC

From email

To email

Additional message

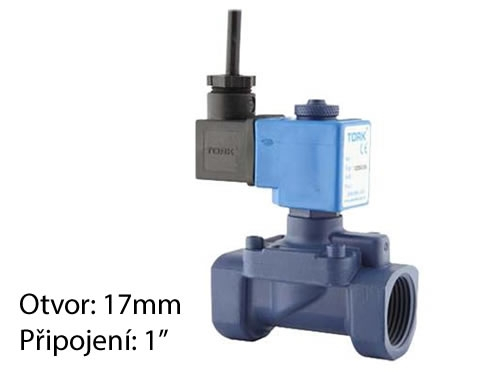

Solenoid Valve for Underwater Applications TORK T-SW 105 DN 25, 12 VDC

Product code: SW1010.055
Manufacturer code: SW1010.055
Warranty: 2 years

Solenoid valve for underwater applications TORK T-SW 105 DN 25, orifice 17 mm, connection 1", pressure 0.5-16 Bar, power supply 12 VDC, normally closed. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
3.3 workdays € 7,02

Bpost HD (Home Delivery):
3.2 workdays € 10,64

BPost - PP (Pick-up Point):
3.1 workdays € 9,91

FedEx Priority:
1.7 workdays € 12,71

DHL Express:
1.1 workdays € 16,94

DHL Express: 1.1 workdays, € 16,94
In stock 1 pcs

Parameters and catalogs

Atex	No
Connection size	1"
Connection Type	Internal thread
Function	Closed without voltage
Gasket	NBR
IP Rating	IP 68
Medium	0...1.6 bar
Medium Temperature	80 °C
Nominal diameter	DN 25
Power Supply	12 VDC
Pressure	16 bar
Weight	0.79 kg

Catalog sheet download

Download PDF

Catalog sheet download

Download PDF

Electromagnetic solenoid valve TORK. The valve is used for water and aggressive environments. Submersion possible up to 10m for 72 hours. The valve body is made of Teflon-coated brass, with internal parts made of stainless steel. Cable length of 3m.

COILS FOR THIS MODEL - HERE (parameter - Application)

NOTICE - due to operation and ambient temperatures, the surface of the coil may heat up. This is a normal characteristic of coils!
