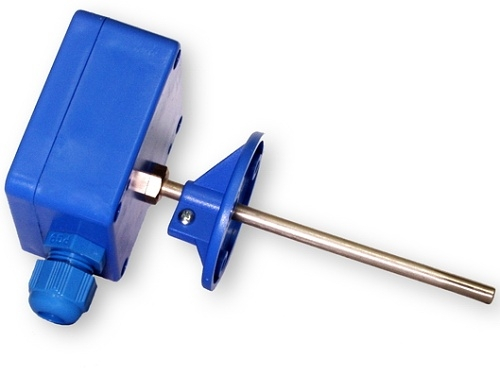

The Regmet resistance sensor, designed for general use in control and regulation systems. It is used for temperature measurement and signalling. The sensor head is made of plastic, and all metal parts are stainless steel according to DIN 1.4301. Regmet resistance sensors are suitable for standard, chemically non-aggressive environments. They require no maintenance.

Technical Specifications

• characteristic Pt 1000, Tk=3850ppm/ °C
• design for HVAC duct (length 180mm)
• measuring range -30 to 150 °C
• accuracy "class B"
• ambient temperature: -30 to 80 °C
• relative humidity < 80%
• protection rating IP 65
• recommended cable diameter 4-8mm
