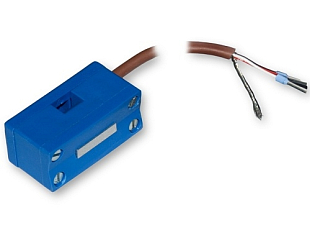

The Regmet resistance sensor, designed for general use in control and regulation systems. It is used for temperature measurement and signalling. The sensor head is made of plastic, and all metal parts are stainless steel according to DIN 1.4301. Regmet resistance sensors are suitable for standard, chemically non-aggressive environments. They require no maintenance.

Technical Specifications

• Characteristic Ni 1000, Tk=6180ppm/°C
• Surface-mounted design with cable outlet
• Measuring range -30 to 80 °C
• Accuracy "Class B"
• Ambient temperature: -30 to 80 °C
• Relative humidity < 80%
• Protection rating IP 30
• Recommended cable diameter 4-8mm
