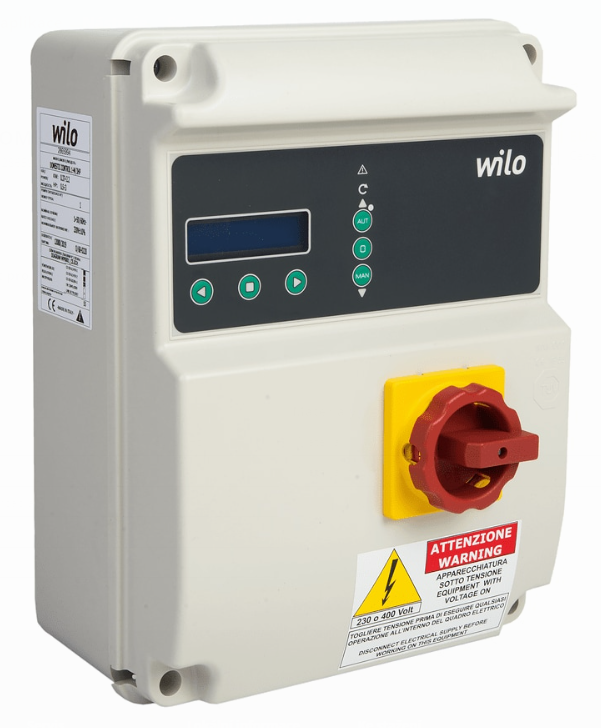

The Wilo Domestic Control 1T/10-S is a universal electronic control unit for managing a single pump with a three-phase motor. This unit offers advanced protection and control features, including dry-run protection by measuring cosφ and minimum current value. It is ideal for applications requiring operating modes for emptying or filling, providing flexibility in system setup and monitoring thanks to extensive configuration and indication options.

Key Features:

• Operating modes for emptying sumps and filling tanks, supporting efficient water supply
• Advanced features, including automatic motor testing and optional pump on/off modes
• Multilingual menu with password access protection and automatic motor parameter configuration
• Extensive monitoring and alarms, including audio and visual signals, with the option to set alarm delays
• Inputs for pressure or level sensors and configurable inputs for float switches and pressure switches

Technical Specifications:

• Input/output voltage 3~400 VAC
• Min. rated current 2 A, max. rated current for each pump 16 A
• Protection class IP55 and housing material made of PC for high durability
• Dimensions: Length 240 mm, Width 145 mm, Height 315 mm

The Domestic Control is an optimal solution for pump management in water supply applications, offering flexible configuration options and advanced features for maximum operational efficiency and safety.
