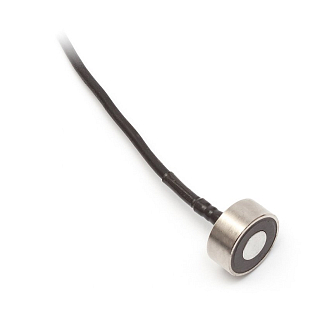

Temperature Sensor SENSIT TR 158 with Pt 100/3850 Sensor

  • 4 variants

Temperature Sensor SENSIT TR 158 with Pt 100/3850 Sensor

SENSIT
  • Product code: 215807000000002
  • Manufacturer code: 2230T15800060200010012000132000
  • Warranty: 2 years

The SENSIT TR 158 temperature sensor is equipped with a Pt 100/3850 sensor. Ideal for measuring the surface temperature of ferromagnetic bodies with a temperature range of -30...150 °C. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 33,17
Price with VAT 21 % € 40,14

Parameters and catalogs

Measurement range -30...150 °C
Sensor type Pt 100/3850
Weight 0.20 kg

Data sheet download

Download PDF

The TR 158 temperature sensor is designed for measuring the surface temperature of ferromagnetic bodies with a temperature range of -30 to 150 °C. The minimum surface diameter for sensor placement must be 28 mm, allowing its use in a wide range of applications. Thanks to the sensor's design, a quick response to temperature changes is ensured, especially when using silicone grease or thermally conductive paste for better thermal contact. The sensors are intended for use in chemically non-aggressive environments, and their use must be adapted to the temperature and chemical resistance of the casing and supply cable.

Main Features:

  • Temperature range: -30...150 °C.
  • Protection: IP 67
  • Holding force: 20 N, ensures reliable sensor attachment.
  • Case material: nickel-plated steel or duralumin, offering durability and long-term lifespan.

Technical Specifications:

  • Sensor types: Pt 100/3850
  • Supply cable length: 2 m
  • Two-wire design
