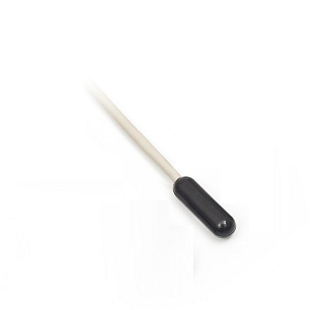

Temperature Sensor SENSIT TR 160-20 with Pt 1000/3850 Probe

  • 4 variants

Temperature Sensor SENSIT TR 160-20 with Pt 1000/3850 Probe

SENSIT
  • Product code: 216012000002002
  • Manufacturer code: 2240T16000180200060006000202000
  • Warranty: 2 years

The SENSIT TR 160 temperature sensor is equipped with a Pt 1000/3850 sensor. Ideal for measuring solid, bulk, gaseous, and liquid substances. Temperature range -40...105 °C. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 13,21
Price excluding VAT € 10,37
Price with VAT 21 % € 12,55

Product variants

+

Parameters and catalogs

Measurement range -40...105 °C
Sensor type Pt 1000/3850
Weight 0.10 kg

Data sheet download

Download PDF

The SENSIT TR 160 temperature sensor is equipped with a Pt 1000/3850 sensor. Ideal for measuring solid, bulk, gaseous, and liquid substances. Temperature range -40...105 °C. Thanks to the sensor's design, a quick response to temperature changes is ensured, especially when using silicone grease or thermally conductive paste for better thermal contact. The sensors are intended for use in chemically non-aggressive environments, and their use must be adapted to the temperature and chemical resistance of the casing and the supply cable.

Main features:

  • Temperature range: -30...150 °C.
  • Protection: IP 67
  • Casing diameter 6 mm
  • Casing length 20 mm
  • Casing material: nickel-plated steel or duralumin, offering durability and long-term lifespan.

Technical specifications:

  • Sensor types: Pt 1000/3850
  • Supply cable length: 2 m
  • Two-wire design
