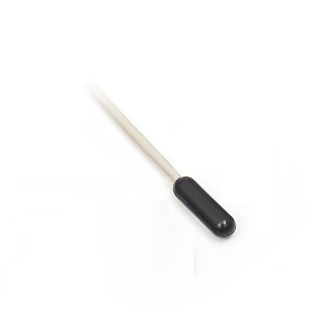

Temperature sensor SENSIT TR 160-20 with Pt 100/3850 sensor

Product code: 216007000002002
Manufacturer code: 216007000002002
Warranty: 2 years

The SENSIT TR 160 temperature sensor is equipped with a Pt 100/3850 sensor. Ideal for measuring solid, bulk, gaseous and liquid substances. Temperature range -40...105 °C. More information

Availability
Out of stock - can be requested
Out of stock

Would you like to get a price offer? Contact us

Parameters and catalogs

Measuring range	-40...105 °C
Sensor type	Pt 100/3850
Weight	0.10 kg

DATA SHEET download

Download PDF

The SENSIT TR 160 temperature sensor is equipped with a Pt 100/3850 sensor. Ideal for measuring solid, bulk, gaseous and liquid substances. Temperature range -40...105 °C . Thanks to the design of the sensor, a quick response to temperature changes is ensured, especially when using silicone vaseline or thermally conductive paste for better thermal contact . The sensors are intended for use in chemically non-aggressive environments and their use must be adapted to the temperature and chemical resistance of the housing and supply cable.

Main features:

Temperature range: -30...150 °C.
Protection: IP 67
Case diameter 6 mm
case length 20 mm
Case material: nickel steel or duralumin, offering durability and long life.

Technical Specifications:

Sensor types: Pt 100/3850
Length of the supply cable: 2 m
Two-wire design
