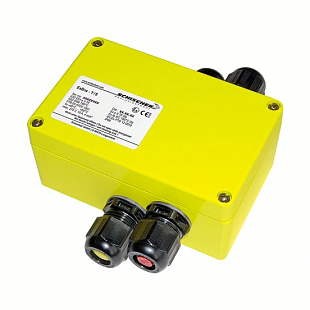

Terminal box Schischek ExBox-SW for connecting external ExSwitch switches to ExMax actuators. Designed for installation in zones 1, 2, 21, and 22, Ex-e design with IP66 protection and an aluminium or stainless steel enclosure. More information
Out of stock - can be requested
| Weight | 0.65 kg |
The Schischek ExBox-SW terminal box is designed for the safe connection of external ExSwitch switches to the ExMax series actuators installed in explosive environments. The Ex-e type construction ensures safety in zones 1, 2, 21, and 22 according to the ATEX directive.
The body is made of powder-coated aluminium or stainless steel 1.4404 (316L) with IP66 protection. The ExBox-SW allows for easy cable connection using M20 glands and 1.5 mm² terminals and is equipped with terminals for external ExSwitch, potential equalization, and resistance to temperatures up to +60 °C.
| Application | For ExMax actuators and external ExSwitch switches |
| Usage Zones | 1, 2, 21, 22 (ATEX II 2G/D) |
| Protection | IP66 according to EN 60529 |
| Ambient Temperature Range | –40...+60 °C (–40...+45 °C for VA version) |
| Enclosure Material | Powder-coated aluminium or stainless steel 1.4404 / 316L |
| Certification | ATEX, IECEx, EAC, CE |
