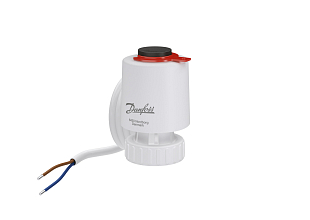

Thermoelectric Actuator Danfoss, TWA-Q, 230V, NC, cable 1.2m (082F1600)

Thermoelectric Actuator Danfoss, TWA-Q, 230V, NC, cable 1.2m (082F1600)

Thermoelectric Actuator Danfoss, TWA-Q, 230V, NC, cable 1.2m (082F1600)

DANFOSS
  • Product code: 082F1600
  • EAN : 5702425243066
  • Manufacturer code: 082F1600
  • Warranty: 2 years

It is designed for use with pressure-independent control valves (PICV) type AB-QM DN10-32. The actuator can be controlled via an on/off controller. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx:
    2.4 workdays € 7,02
    Bpost HD (Home Delivery):
    2.7 workdays € 10,64
    BPost - PP (Pick-up Point):
    3.1 workdays € 9,91
    FedEx Priority:
    1.7 workdays € 12,71
    DHL Express:
    1.1 workdays € 16,94

    DHL Express: 1.1 workdays, € 16,94

  • In stock 5 pcs

List price € 68,30
Price excluding VAT € 44,03
Price with VAT 21 % € 53,28
− +

Trustpilot

Parameters and catalogs

Cable length 1.2 m
Function Closed without voltage
IP Rating IP 54
Lift 5 mm
Max. water temperature 95 °C
Power Supply 230 VAC
Weight 0.20 kg

Technical data sheet EN download

Download PDF

It is designed for use with pressure-independent control valves (PICV) type AB-QM DN10-32. The actuator can be controlled via an on/off controller. The actuator is designed for controlling hot or chilled water in fan coil units, small reheaters, and coolers in temperature control systems.

Main features:

  • Power supply: 230V
  • Position indicator
  • Function: normally closed (NC)
  • Maximum medium temperature: 95 °C

Technical specifications:

  • Power consumption: <2 W
  • Closing force: 110±10 N
  • Stroke: 5 mm
  • Protection class: IP 54
  • Ambient operating temperature: 2 to 60 °C
  • Cable length: 1.2 m
  • Connection thread: M30 × 1.5

The actuator operates on the principle of thermal expansion, which moves the valve stem depending on the heating. The NC (normally closed) model has the stem extended in the inactive state, while the NO (normally open) model has the stem retracted. Upon activation, the valve opens or closes in approximately 1.5 minutes, depending on the type of actuator.
