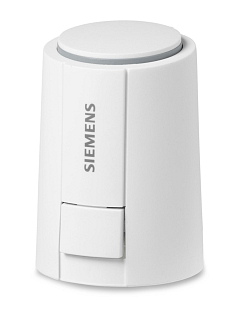

Thermoelectric Actuator Siemens STA121 NC, 24 V, 1 m (STA121.65L10)

Product code: STA121.65L10
EAN : 4047625026165
Manufacturer code: STA121.65L10
Warranty: 2 years

Thermoelectric actuator with a stroke of 6.5 mm. Power supply 24 AC/DC. Spindle retracted when de-energized. Connection cable 1m. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
2.4 workdays € 7,02

Bpost HD (Home Delivery):
2.7 workdays € 10,64

BPost - PP (Pick-up Point):
3.1 workdays € 9,91

FedEx Priority:
1.7 workdays € 12,71

DHL Express:
1.1 workdays € 16,94

DHL Express: 1.1 workdays, € 16,94
More than 5 pcs in stock

Parameters and catalogs

Auxiliary contact	0...5 V
Connection size	M30 x 1.5
Control	-40...180 °C
Function	Closed without voltage
Power Supply	24 VDC, 24 VAC
Weight	0.11 kg

Data sheet download

Download PDF

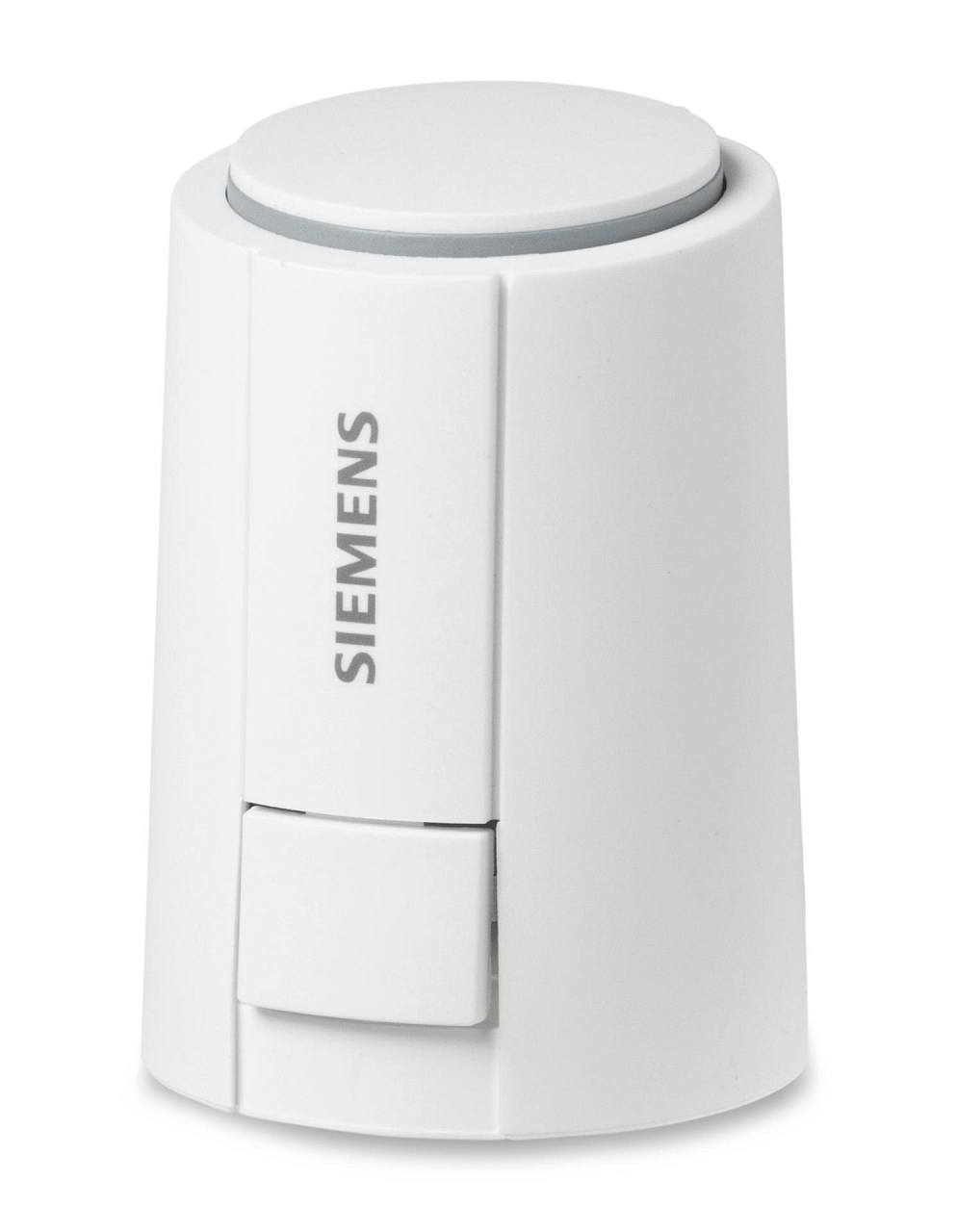

The electrothermal actuator STA121.65 from Siemens is designed for precise control of radiator, small, and zone valves, as well as PICV. This model is maintenance-free and constructed for long-term and quiet operation, making it ideal for technical applications where reliability and minimal maintenance are crucial. It operates with an AC/DC 24 V supply voltage and is equipped with several features that facilitate installation and operation.

Application

Control of end units on the water side, heating, and cooling zones
Combination with Siemens radiator valves (VDN, VEN, VPD, VPE...)
Can also be combined with radiator valves from other manufacturers (Heimeier, Cazzaniga, Oventrop M30 x 1.5, Honeywell-Braukmann, and MNG - without the need for an adapter)
The actuator position display is readable from a 360° angle, which facilitates monitoring and maintenance.
