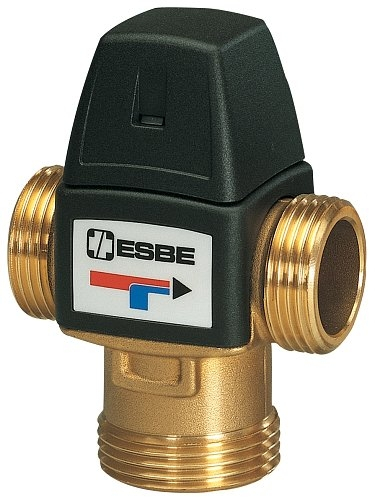

Thermostatic Mixing Valve ESBE VTA 322 35-60 °C G 3/4" (31100600)

Product code: 31100600
EAN : 7330193024600
Manufacturer code: 31100600
Warranty: 2 years

Thermostatic mixing valve ESBE. Adjustable temperature range 35-60 °C. Dimension DN 15, connection external thread G 3/4". More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
3.3 workdays € 7,02

Bpost HD (Home Delivery):
3.2 workdays € 10,64

BPost - PP (Pick-up Point):
3.1 workdays € 9,91

FedEx Priority:
1.7 workdays € 12,71

DHL Express:
1.1 workdays € 16,94

DHL Express: 1.1 workdays, € 16,94
More than 5 pcs in stock

Parameters and catalogs

Connection size	G 3/4"
Connection Type	External thread
Flow	1.2 m3/h
Material	Brass
Nominal diameter	DN 15
Opening Temperature	35...60 °C
Weight	0.52 kg

Datasheet download

Download PDF

The ESBE VTA 320 series thermostatic mixing valve is a suitable component for universal use in domestic hot water installations equipped with HWC (hot water circulation). It is also suitable for smaller underfloor heating circuits (up to 50m²) when you want to pay special attention to the range of temperatures and flow rates.

Usage

Distribution of fresh/drinking water
Distribution of water with antifreeze additive (≤ 50% glycol mixture)
Closed water system

Installation Example

Valve Function

The thermostatic valve has an asymmetric flow arrangement. The desired temperature setting is done via a rotary knob under the top cover of the valve. It also includes a very important anti-scald function, which automatically shuts off the hot water supply in the event of a cold water supply interruption.
