Three-way mixing control valve Honeywell CENTRA with angled flow for heating and cooling systems. More information
Delivery to Belgium (days are avarages)
DHL Express: 8.1 workdays, € 22,99
| Connection size | DN 15 |
| Connection Type | Internal thread |
| Flow | 4 m3/h |
| Pressure | PN 6 |
| Temperature | 2...130 °C |
| Type of valve | Mixing |
| Weight | 2.20 kg |
Assembly instructions download
Download PDF
Catalog download
Download PDF
Catalog sheet download
Download PDF

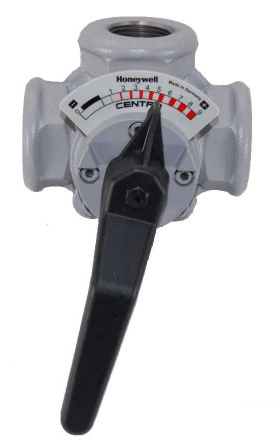

The Honeywell CENTRA DR15MA three-way mixing control valve is suitable for precise temperature regulation of water in heating and cooling systems. It is made from durable cast iron with chrome-plated internal parts that come into contact with water. The maximum rotation angle of the valve is 90°, and the valve is operated using a lever, which is turned based on the control curves of both valve inputs. To achieve the desired temperature, water is added to the return flow to the heater.
A CENTRA actuator can be connected to the valve for automation - M6061A1019 and M6061A1013.
