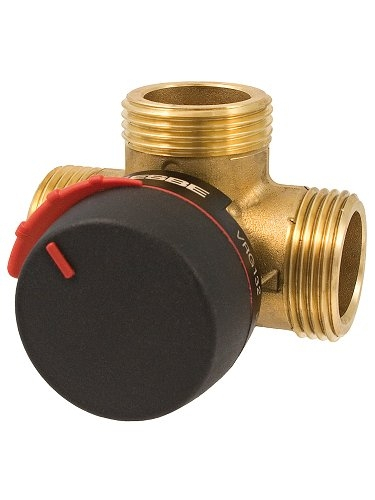

The three-way mixing valve ESBE VRG 132 is made from DZR brass with protection against zinc leaching. The valve is equipped with an adjustable handwheel with a scale, which is additionally fitted with end stops. The valve's range of motion is max. 90°. The scale located under the adjustment knob can be positioned anywhere along the rotation path of the mixing valve core, depending on the valve's orientation in the application.

The valve's nominal diameter is DN 15, but the connection thread is size 3/4".

Examples of Use

• Heating applications
• Cooling
• Underfloor heating
• Solar systems
• Ventilation
• Central distribution

The VRG 132 valve can be used either as a mixing or as a diverting valve.

Installation Example

Mixing

Diverting

Suitable Actuators

• Complete range of ESBE actuators series ARA 600 (adapter included with the actuator).
• ESBE actuator series 90 (incl. controllers 90C etc.). Must be fitted with adapter VRG 801 - item number 16053300
• HVAC actuators BELIMO - any servo (e.g., LM-A, NM-A, LF etc.) can be used in conjunction with adapter type MK-VRG....
• Actuators for mixing fittings BELIMO NRD, HT in conjunction with adapter MS-NRE6.

Service

All main parts can be replaced or resealed - a gasket set or a complete renovation kit is available. In most cases, it is not necessary to remove the valve from the application during servicing.
