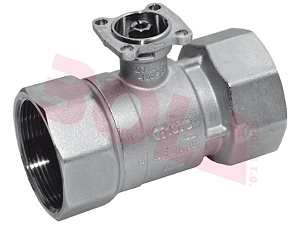

Two-way ball valve Belimo R2032-10-B2 (R 229)

Two-way ball valve Belimo R2032-10-B2 (R 229)
Extended warranty 5 years

Two-way ball valve Belimo R2032-10-B2 (R 229)

BELIMO
  • Product code: R2032-10-B2
  • Manufacturer code: R2032-10-B2
  • Warranty: 5 years

Ball valve with internal thread for open and closed systems of hot and cold water. The ball valve is operated by a… More information

This product is no longer available, as it has been replaced with a new model.

View the new model
Trustpilot

Parameters and catalogs

Connection size DN 32
Connection Type Internal thread
Medium Temperature -10...120 °C
Pressure PN 16
Type of fitting Two-way
Weight 0.85 kg

Datasheet download

Download PDF

Ball valve with internal thread for open and closed systems of hot and cold water.

The ball valve is operated by a rotary actuator. Rotary actuators are commonly controlled by standard regulation systems either continuously or in a 3-point manner, and they drive the ball of the ball valve, which acts as a control element, to the position specified by the control signal. Opening the valve occurs counterclockwise, closing occurs clockwise.

Features:

  • Ball valves can be mounted upright to horizontal. It is not permissible for the ball valve to be suspended, i.e., installed with the shaft facing downwards.
  • It is necessary to comply with the requirements according to VDI 2035 concerning water quality.
  • Ball valves are control elements. To ensure they can perform their regulatory function over the long term, it is recommended to use a dirt filter.
  • The valve is airtight and maintenance-free.
