Two-way control valve Honeywell V5832A1079 DN 20, 4 m3/h

2 variants

Compare
Print
Send to e-mail

Send product by e-mail:Two-way control valve Honeywell V5832A1079 DN 20, 4 m3/h

From email

To email

Additional message

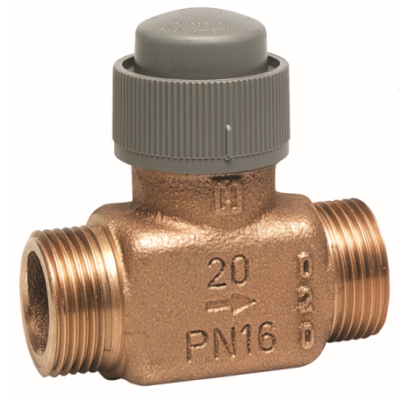

Two-way control valve Honeywell V5832A1079 DN 20, 4 m3/h

Product code: V5832A1079
EAN : 4019837009762
Manufacturer code: V5832A1079
Warranty: 2 years

Two-way linear control valve Honeywell V5832A for seamless regulation of heating and cooling systems. Stroke 6.5 mm. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
2.4 workdays € 7,02

Bpost HD (Home Delivery):
2.7 workdays € 10,64

BPost - PP (Pick-up Point):
3.1 workdays € 9,91

FedEx Priority:
1.7 workdays € 12,71

DHL Express:
1.1 workdays € 16,94

DHL Express: 1.1 workdays, € 16,94
In stock 4 pcs

Parameters and catalogs

Connection size	DN 20
Connection Type	External thread
Flow	4 m3/h
Lift	6.5 mm
Medium	0...1.6 bar
Pressure	PN 16
Temperature	2...120 °C
Type of fitting	Two-way
With actuator	No
Weight	0.30 kg

Catalog sheet download

Download PDF

Small control valves V5832A are used together with small stroke actuators to regulate heating and cooling systems. They are utilized for fan coil units, small heaters, and small cooling units in electrical systems for water regulation. They are made of brass. Thanks to their small design, they can be installed even in limited spaces.

The ideal compatible actuators are from the Honeywell brand, series M6410C, M6410L, M7410C, M7410E, MT8.

Features

stroke 6.5 mm
DN 20
flow rate 4 m3/h
medium 2...120 °C
max 50% glycol
external thread

Operation

The valve is opened by an internal spring. When purchased, a plastic cap is fitted on the valve, which can be turned to manually control the valve. This allows the system to be filled even without connecting actuators and controllers. These can be connected later when regulation is required.
