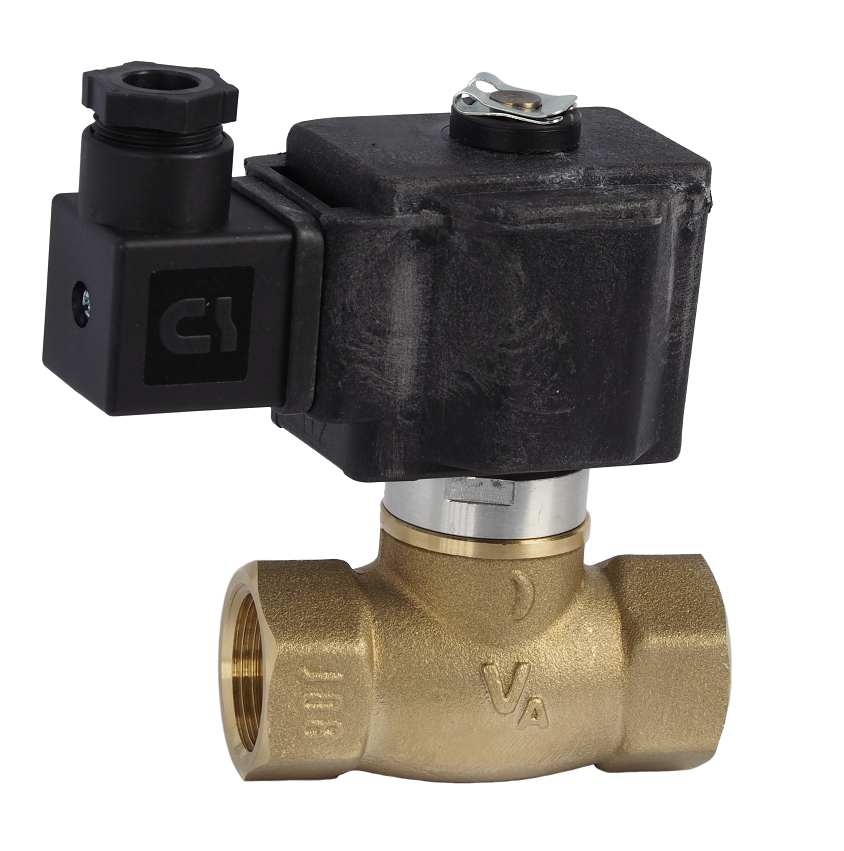

Two-way solenoid gas valve PEVEKO EVF 12.11 DN 25, 24 VDC

Two-way solenoid gas valve PEVEKO EVF 12.11 DN 25, 24 VDC
  • 3 variants

Two-way solenoid gas valve PEVEKO EVF 12.11 DN 25, 24 VDC

PEVEKO
  • Product code: 121125P.22
  • Manufacturer code: EVF 12.11 DN 25P
  • Warranty: 2 years

Two-way solenoid valve PEVEKO DN25 P. Suitable for gaseous fuels including propane-butane. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 131,27
Price with VAT 21 % € 158,84

Product variants

− +

Trustpilot

Parameters and catalogs

Atex Yes
Connection size 1"
Connection Type Internal thread
Function Closed without voltage
Gasket NBR
IP Rating IP 54
Medium DN 13
Medium Temperature 80 °C
Nominal diameter DN 25
Power Supply 24 VDC
Pressure Low pressure
Weight 1.00 kg

Datasheet download

Download PDF

Two-way solenoid valve (directly operated) for gaseous fuels. The valve is used for two-position control of gaseous fuel flow. The valve is closed when de-energized. We recommend placing a dirt filter before the valve.

Features:

  • two-way solenoid valve
  • closed when de-energized (NC)
  • DN 25 / internal thread
  • Kv 25 m3/h
  • operating overpressure 0-5 kPa
  • suitable for gaseous fuels including propane-butane
  • medium temperature max. 80 °C
  • switching time max. 1s
  • protection class IP 54
