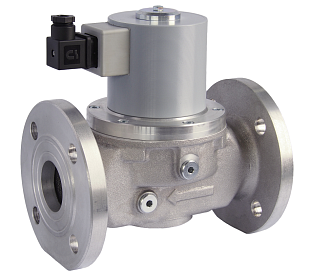

Two-way solenoid gas valve PEVEKO EVPE 1080.22/P

Two-way solenoid gas valve PEVEKO EVPE 1080.22/P
  • 3 variants

Two-way solenoid gas valve PEVEKO EVPE 1080.22/P

PEVEKO
  • Product code: 5576.5.22
  • Manufacturer code: EVPE 1080.*2/P
  • Warranty: 2 years

PEVEKO DN80 two-way solenoid valve. Suitable for gaseous fuels including propane-butane. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 1 364,28
Price with VAT 21 % € 1 650,78

Product variants

− +

Trustpilot

Parameters and catalogs

Atex Yes
Connection size DN 80
Connection Type Flange
Function Closed without voltage
Gasket NBR
IP Rating IP 54
Medium DN 13
Power Supply 24 VDC
Pressure Medium pressure
Temperature 80 °C
Weight 24.50 kg

Datasheet download

Download PDF

Solenoid, direct-acting valve. The valve is used for two-position control of gaseous fuel flow. We recommend installing a dirt filter upstream of the valve.

Features:

  • two-way valve
  • normally closed (NC) when de-energised
  • DN 80 / flange
  • operating overpressure 0–50 kPa
  • suitable for gaseous fuels incl. propane-butane
  • max. medium temperature 80 °C
  • switching time max. 1 s
  • IP52 protection rating

The valve is supplied incl. power coil and connector.
