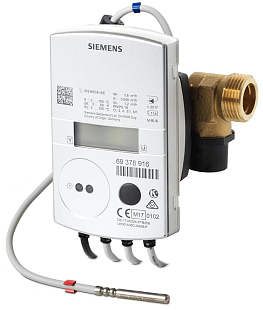

Ultrasonic Heat and Cold Meter Siemens UH30-C43/GJ

Product code: UH30-C43/GJ
Manufacturer code: UH30-C43/GJ
Warranty: 2 years

Small ultrasonic heat and cooling meter Siemens Ultraheat UH30-C43/GJ for installation in the return pipe. More information

Availability
Out of stock - can be requested
Out of stock

Parameters and catalogs

Building length	260 mm
Connection size	DN 32
Connection Type	External thread
Flow	3.5 m3/h
M-BUS communication	No
Sensors included in the meter	Yes
Type of Meter	Ultrasonic
Weight	1.20 kg

Datasheet download

Download PDF

Operating and installation instruction download

Download PDF

Technical description download

Download PDF

The UH30-C43/GJ ultrasonic heat and cooling meter measures thermal energy consumption in heating systems. It consists of a flow meter and evaluation unit that are separate from each other. Both parts can be installed separately thanks to a 1.5 m long cable. Two thermal sensors connected to the evaluation unit measure the temperature in the piping. The evaluation unit contains a battery with an 11-year lifespan. The measured data is displayed on an integrated display. It is primarily intended for measurement in residential units.

For meters with flow rates of 3.5-6 m3/h, there is a choice of display units in kWh or GJ. This model has a GJ display unit.
