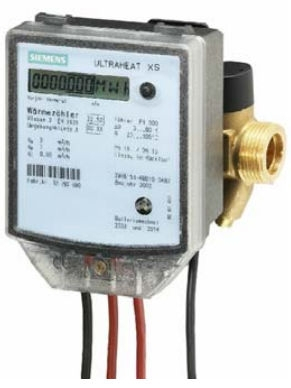

The ultrasonic heat meter ULTRAHEAT XS is used to measure heat consumption, particularly in central heating systems, where energy is supplied to multiple users such as apartment buildings and office buildings. It is not appropriate for systems with water-glycol mixtures.

Usage:

• in offices, apartment buildings and administrative buildings

Functions:

• any installation position in the return or supply pipe
• saving consumption values on a specified day
• 15 monthly values
• self-diagnosis with error indication
• wear-free - no moving parts

Technical specifications:

• DN 20
• max. flow rate 1,5 m3/h
• construction length 110mm
• battery life approx. 6 years
• protection class IP 54
• supplied incl. battery and temperature sensors 27,5mm, M10x1, cable 1,5m

Detailed technical information can be found in the enclosed datasheet.
