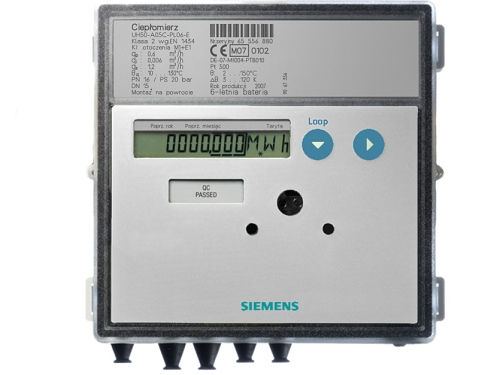

The small ultrasonic heat meter ULTRAHEAT UH50-A is designed for measuring heat consumption in district and local heating systems. It can also be used for measuring cooling (this must be specified in the order!), or simply for measuring flow in water systems. Standard installation in the return line.

Features:

• does not require calming sections of piping before the meter
• any installation position
• all-metal construction of the flow meter part = long-term durability and stability
• indication of air presence
• parallel communication, possibility of two communication modules at once

Technical data:

• nominal flow rate 0.6 m³/h
• construction length 190 mm
• DN 15 / PN 16
• threaded connection G 1"
• battery power supply included with the meter

Temperature sensors, or a 230V power module, must be ordered separately!

• the meters are calibrated at the manufacturing plant in DE and are not provided with a certificate: Verification of the specified meter
• if it is necessary to supply the meter with a Verification of the specified meter, this must be communicated and ordered along with the meter (UH50- VERIFICATION WITH CERT). The verification certificate cannot be requested retroactively.
• if it is necessary to supply the meter with a CZ Verification of the specified meter, the delivery time for the meter is 4-6 weeks.
