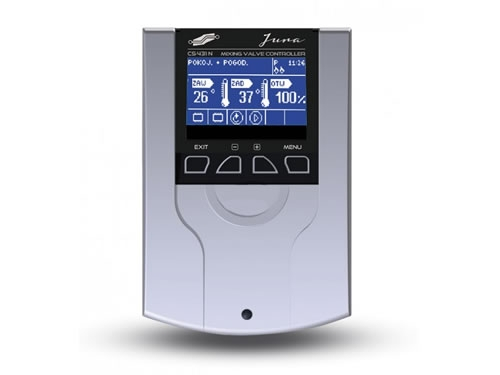

Weather Compensated Mixing Valve Controller ESBE CS-431N (65006400)

Weather Compensated Mixing Valve Controller ESBE CS-431N (65006400)

ESBE
  • Product code: 65006400
  • Manufacturer code: 65006400
  • Warranty: 2 years

Weather-compensated controller for mixing valve ESBE CS-431N, compatible with room controller, smooth control of three-way and four-way valves, outdoor sensor, capability to control two additional valves. More information

This product is no longer available, as it has been replaced with a new model.

View the new model

Parameters and catalogs

Boiler control No
Built-in actuator No
Communication No
DHW Heating Yes
Number of mixed circuits 1
Sensors Yes
Weight 1.22 kg

Datasheet download

Download PDF

Operating instructions download

Download PDF

The thermostat is designed for operating a three or four-way mixing valve with the option to connect an additional valve pump. The controller is equipped with weather-based regulation, weekly regulation, and also works with a room regulator. An additional advantage of the controller is the return protection function, which prevents water from boiling in the short boiler circuit and protects against very low water temperatures returning to the boiler.

It can cooperate with two additional valve modules, allowing control of a total of three mixing valves.

Controller Functions

  • smooth control of three-way and four-way valves
  • pump control
  • possibility to control two additional valves using additional modules CS-61 v4, CS-430 RS, or CS-431n
  • option to connect an internet module CS-500 ETHERNET
  • return protection
  • weather-based regulation and weekly regulation
  • collaboration with a standard room regulator or with RS communication

Controller Equipment

  • LCD display
  • valve temperature sensor
  • return and boiler temperature sensor
  • outdoor sensor
  • casing made from high-quality materials resistant to high and low temperatures
