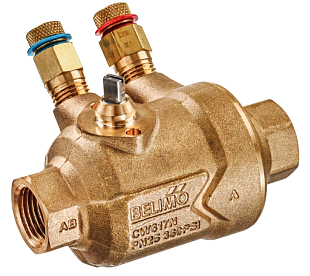

Belimo C220QPT-F Control Ball Valve with Adjustable Flow

Product code: C220QPT-F
Manufacturer code: C220QPT-F
Warranty: 2 years

Belimo control ball valve with adjustable flow and two measuring ports, two-way with internal thread. Suitable for closed cold and hot water systems. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
3.3 workdays € 7,02

Bpost HD (Home Delivery):
3.2 workdays € 10,64

BPost - PP (Pick-up Point):
3.1 workdays € 9,91

FedEx Priority:
1.7 workdays € 12,71

DHL Express:
1.1 workdays € 16,94

DHL Express: 1.1 workdays, € 16,94
In stock 3 pcs

Parameters and catalogs

Connection size	DN 20
Connection Type	Internal thread
Flow	0.98 m3/h
Medium	0...1.6 bar
Pressure	PN 25
Temperature	-20...120 °C
Type of fitting	Two-way
With actuator	No
Weight	1.10 kg

Catalog sheet eng download

Download PDF

Regulating ball valve for cold and hot water systems and for controlling air conditioning and heating systems on the water side. The valve is operated by an actuator that can be easily connected to the valve. At a differential pressure of 16...350 kPa, the valve maintains a constant flow. When installing the valve, ensure that the flow direction follows the arrow marked on the valve.

The resulting flow can be adjusted by the degree of valve opening. The individual adjustment steps are in increments of 2.5°. The end stop is simply placed in the desired position.

Actuators of type CQ... and CQK... from the brand Belimo are connected to the valve.

The C220QPT-F has two measuring terminals through which it measures the pressure drop when passing through the valve. The drop is measured by the difference in values at the inlet terminal and the outlet terminal. The terminals can also be used to measure the efficiency of the differential pressure on the valve, which should range between 16...350 kPa. If this is the case, the valve then operates pressure-independently and ensures a constant flow.
