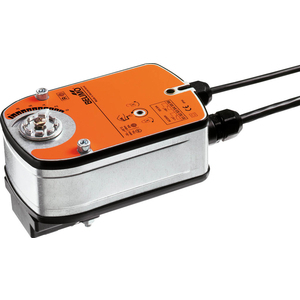

Belimo LRF230-S Ball Valve Actuator

Belimo LRF230-S Ball Valve Actuator

Product code: LRF230-S
Manufacturer code: LRF230-S
Warranty: 2 years

Rotary actuator Belimo LRF230-S for ball valves. With a motor torque of 4 Nm and a supply voltage of 230 VAC. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
2.4 workdays € 7,02

Bpost HD (Home Delivery):
2.7 workdays € 10,64

BPost - PP (Pick-up Point):
3.1 workdays € 9,91

FedEx Priority:
1.7 workdays € 12,71

DHL Express:
1.1 workdays € 16,94

DHL Express: 1.1 workdays, € 16,94
In stock 2 pcs

Parameters and catalogs

Cable length	1 m
Emergency function	86 mm
IP Rating	IP 54
Power Supply	230 VAC
Setup time	75 s
Torque	4 Nm
Weight	1.80 kg

Assembly instructions download

Download PDF

Data sheet download

Download PDF

Belimo LRF230-S rotary actuator for ball valves. With a motor torque of 4 Nm and a supply voltage of 230 VAC.

Rotary actuator with fail-safe function LRF for two and three-way Belimo ball valves. Suitable for both open/close versions and regulating versions of ball valves. The actuator includes one auxiliary switch contact. Normally closed (NC)

Interrupting the power supply turns the ball valve back to the fail-safe position using spring energy. The ball valve can be manually adjusted and fixed in any position with a lever. Unlocking is done manually or automatically by supplying power. The actuator is overload protected, requires no end stops, and automatically stops at the stop position.
