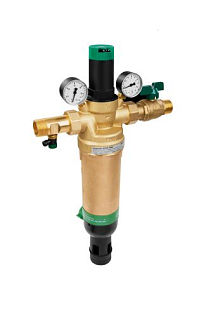

The Honeywell HS10S-1/2ACM domestic filtration station for drinking water features a 50 μm fine mesh. Brass housing with a maximum inlet pressure of 25 bar and a maximum medium temperature of 70 °C. Its very compact design is due to the integration of a pressure reducing valve, a 50 μm fine filter (for capturing mechanical impurities), and a non-return valve (which allows the mesh to be rinsed) into one device.

The filter is equipped with the patented “Double spin” technology, which causes water to circulate around the filter mesh. The circulation of water results in the flushing of impurities located in the upper part of the filter.

Features

• 50 μm fine mesh
• connection size 1/2" (DN 15)
• min. operating pressure 1.5 bar
• max. inlet pressure with transparent housing 25 bar
• outlet pressure 1.5-6 bar
• max. medium temperature 70 °C
• designed for drinking water
• installation in horizontal piping with housing facing downwards
• “Double spin” technology
• brass housing for higher pressure and temperature
• uninterrupted supply of filtered water even during mesh rinsing
• easy replacement of filter mesh and housing
• certificates DVGW, SVGW
