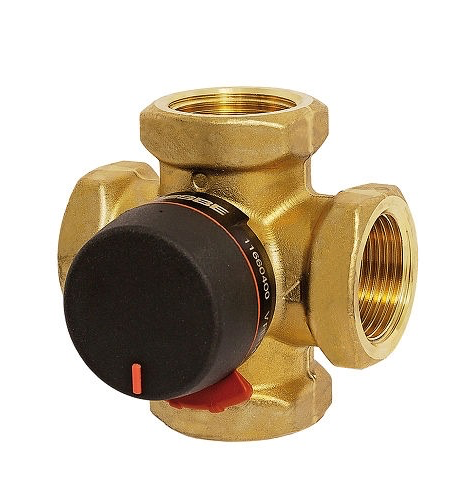

The bivalent mixing valve ESBE series VRB 141 is made from DZR brass with protection against zinc leaching. The valve is used for applications with two independent heat sources connected in series or parallel. The valve is equipped with an adjustable handwheel with a scale, which also features end stops. The valve's operating range is a maximum of 90 °C. The scale located under the adjustment knob can be positioned anywhere along the rotation path of the mixing valve's core, depending on the valve's orientation in the application.

Examples of Use

• Heating
• Cooling
• Underfloor heating
• Solar systems
• Storage tanks requiring two outlets

Installation Example

Function

The VRB 141 valve has two inlets from heat sources. They can be connected in series or parallel. A more economical energy source can be connected to inlet 1 and a backup source to inlet 2. If there is no demand for heat, both inlets are closed. When heat is needed, inlet 1 opens first until it is fully open. In the case of a greater need for heat, the inlet from source 2 begins to open gradually while inlet 1 starts to close. The final phase is when inlet 1 is completely closed and inlet 2 is fully open. The function is similar in principle to a three-way valve, but with the difference of having two inlets instead of one.

Service and Maintenance

All main parts can be replaced or resealed - a gasket set or a complete renovation kit is available. In most cases, it is not necessary to remove the valve from the application during servicing.
