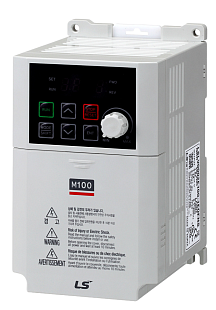

The frequency converter LSLV M100-0004 from LS Electric is a high-performance device designed for three-phase asynchronous motors with a power of 0.4 kW. Designed for single-phase 200~240 VAC input , this model offers output up to 200~240 VAC three-phase voltage with input voltage, making it an ideal solution for a wide range of industrial applications.

Key properties:

• Support for scalar U/F control or slip compensation, ensuring optimal performance for various applications.
• Input voltage 1 phase 200~240VAC
• Output voltage 3 phase 200~240VAC
• Output power 0.95 kVA, 2.4 A
• Integrated operator panel and potentiometer for easy operation.
• 150% overload capability for 1 minute for demanding starting conditions.
• Output frequency up to 400Hz for high-speed operations.
• Ambient temperature in the range of -10...50 ℃

The technical specification highlights the robust design and advanced functions of the frequency converter, including the JOG function , an integrated PID controller, the possibility of setting prohibited frequencies and comprehensive motor protection.

Thanks to the possibility of mounting on a DIN rail and integration into automation systems via analog inputs and the RS485 communication interface (for models with communication), the LSLV M100-0004 is a flexible solution for modern industrial applications.
