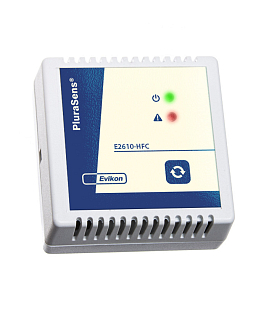

Gas Concentration Detection Sensor Evikon E2610-HFC

The gas concentration detection sensor (gas detector) is used for detecting and providing early warning of dangerous (explosive or toxic) concentrations of the monitored gas. The sensor is suitable for use in underground garages, boiler rooms, kitchens, and other enclosed spaces where there is a risk of accumulating dangerous amounts of gas.

The sensor is equipped with a two-stage alarm system – visual (LED) and audible (85db). Two output relays with changeover contacts can be used for remote signalling or ventilation control. Connection via UART interface is possible.
Manufactured in a robust design with IP20 protection - ABS plastic, resistant to mechanical damage. Rigid, tough, resistant to low and high temperatures, low absorbency, non-toxic.

The sensor's lifespan is more than 5 years.

The default alarm values are set at 70ppm, 100ppm, and 300ppm. The recommended coverage area for one sensor is 80-120 m², 5-6m radius.

Each sensor is factory-calibrated and a calibration protocol is included in the package. The law requires recalibration at least once every 12 months. Calibration can only be performed by a person certified by the manufacturer.

Do not hesitate to contact us for recalibration!

The sensor is designed to detect refrigerants HFC R-12, R-123, R-125, R-134a, R-143, R-22, R-404a, R-407c, R-410a, R1234yf, and others.

The sensor is factory-calibrated to R410a.

Features:

• Selective, sensitive, and stable detection of flammable gases
• Long lifespan of the semiconductor sensor
• Wall-mounted, IP20 protection
• Visual and audible alarm
• Two output relays for alarm/ventilation control

Tip: Get automatically notified of the statutory calibration date with the service www.kalibrovat.cz
