The Evikon E2630-HFC is a detector designed for monitoring the concentration of refrigerant R410a in the air. The device uses a semiconductor sensor that provides accurate real-time measurements. With its reliable performance and easy installation, it is an ideal choice for commercial and industrial applications where refrigerant leak control is crucial.

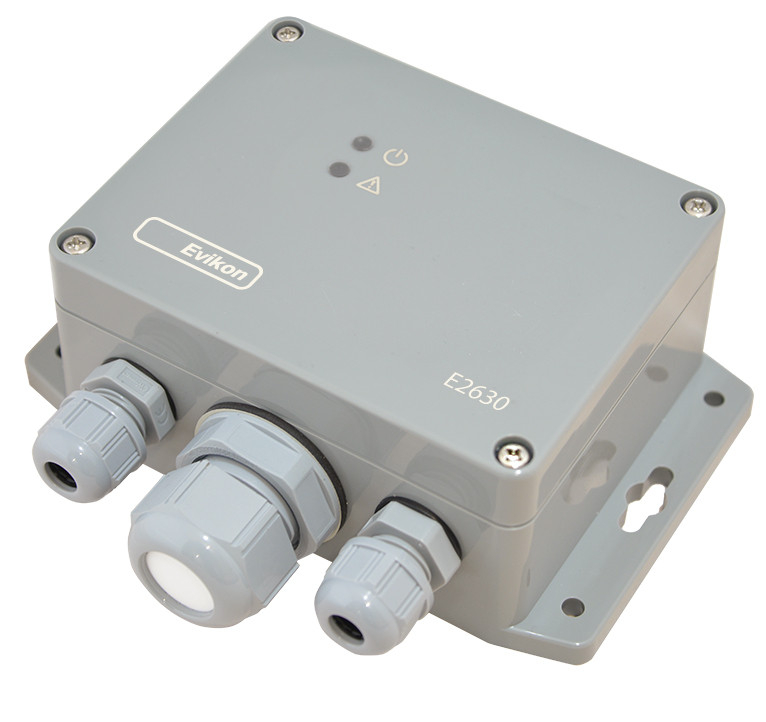

The device is housed in a wall-mounted enclosure with an IP65 protection rating, ensuring its resistance to dust and water. The E2630-HFC detector is equipped with a visual and acoustic alarm, providing timely warnings when R410a concentrations increase. Additionally, it offers two SPDT relay outputs for easy integration with ventilation control systems or alarms, ensuring a comprehensive safety solution.

Common Applications:

The E2630-HFC detector is intended for monitoring R410a refrigerant leaks in environments such as machine rooms, air conditioning and refrigeration equipment, refrigerant storage facilities, or other areas where refrigerant concentration control is necessary. The device serves to detect refrigerant leaks early, helping to minimize risks associated with leaks and protecting both the environment and equipment.

R410a:

R410a is a synthetic refrigerant widely used in air conditioning and refrigeration systems. It is a colorless blend of two hydrofluorocarbon gases that ensures efficient heat transfer. Although it is non-flammable, R410a leaks can contribute to greenhouse gas emissions and affect air quality. Monitoring R410a leaks is crucial for ensuring equipment safety and compliance with environmental standards.

Calibration Protocol

Each Evikon gas detector package includes a factory calibration protocol. The calibration protocol is in English. Gas concentration measurements are influenced by operating temperature and humidity. Therefore, calibration during detector manufacturing is performed with higher safety in mind.

Key Features:

• Detected substances: Refrigerant R410a
• Can respond to: Other refrigerants R404a, R134a, R32, R-1234yf, R-1234ze, flammable gases, toluene, xylenes, cleaner vapours, etc.
• Sensor type: Metal oxide semiconductor sensor with diffusion sampling.
• Measurement range: 0...500ppm with 1ppm resolution.
• Two-stage detection
• Response time: Less than 120 seconds with signal update every second.
• Alarms: Flashing LED and siren (85 dB).
• Recommended recalibration interval: 6-12 months
• Expected sensor lifespan: > 5 years
• Avoid strong mechanical shocks, vibrations, or electromagnetic interference (EMI). Also avoid exposure to corrosive gases or silicone-containing products.

Specifications:

• Power supply: 230 VAC
• Consumption: < 2 VA
• Max. load of SPDT relay outputs: 250 VAC / 30 VDC, 5 A max
• Operating conditions: -40...+70 °C, <95% RH, pressure 0.9...1.1 atm

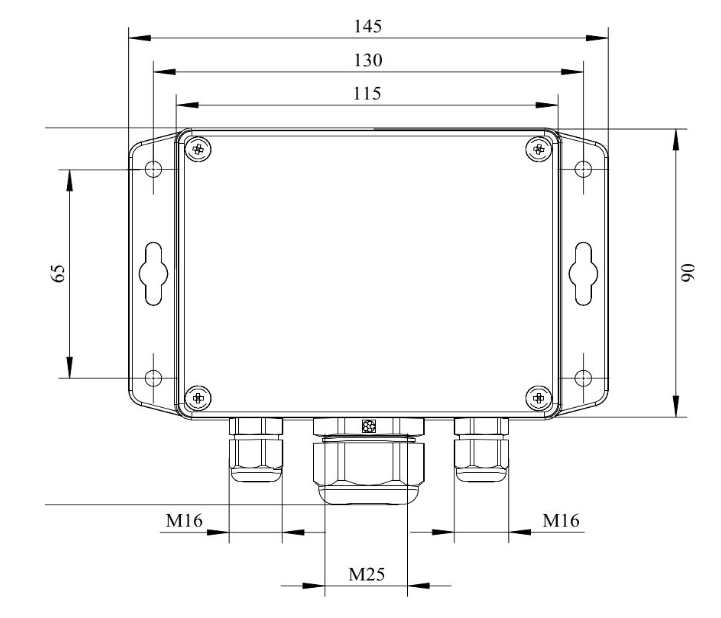

• Enclosure dimensions: H140 × W145 × D55 mm
• Protection class: IP65

This detector is suitable for monitoring R410a refrigerant in various environments, including industrial operations and storage spaces. It offers stable performance with low maintenance requirements, making it a practical solution for long-term use in a wide range of applications.
