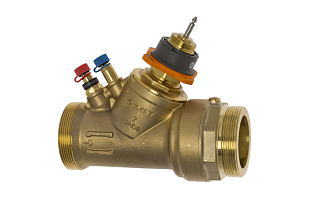

Pressure-independent, balancing and control valve T&A TA-MODULATOR for temperature regulation in heating and cooling systems. More information
This product is no longer available, as it has been replaced with a new model.
View the new model| Connection size | DN 40 |
| Connection Type | External thread |
| Flow | 1 - 6.5 m3/h |
| Measurement range | -10...90 °C |
| Medium Temperature | 90 °C |
| Pressure | PN 16 |
| Weight | 3.20 kg |
Catalog sheet download
Download PDF
Assembly instructions download
Download PDFThe T&A TA-MODULATOR pressure-independent, balancing, and control valve for temperature regulation in heating and cooling systems. Its uniquely shaped EQM characteristic achieves up to 6 times the stroke of conventional linear valves, offering very precise and smooth temperature adjustment. The valve protects the system from overflows and measures the flow rate and differential pressure in the system to enable accurate diagnostics. It is made from a special dezincification-resistant brass alloy (Ametal).
The valve can be connected to a TA-Slider 500 or TA-Slider 750 actuator (adapter must be ordered separately).
