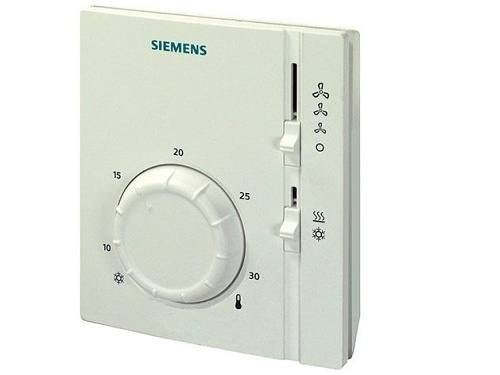

Room thermostat for two-pipe fan coil. Manual switching between heating/cooling modes. More information
Delivery to Belgium (days are avarages)
DHL Express: 1.1 workdays, € 16,94
| Control | Control knob |
| Control | On/Off |
| Design | Wired |
| External sensor | No |
| Measurement accuracy | 1 °C |
| Power Supply | 230 VAC |
| Program | No |
| Setting range | 8...30 °C |
| Weight | 0.22 kg |
Datasheet download
Download PDFRoom thermostat for controlling two-pipe fan-coil units. The thermostat is equipped with a manual heating/cooling switch and a 3-speed switch for fan speed.
Regulation of room temperature in heating or cooling systems. Examples include use in commercial and residential buildings or in light industrial operations.
The RAB thermostat is suitable for use in combination with zone valves, fans, or valves with thermoelectric actuators.
Heating - when the temperature drops below the set value, the output contact for heating is activated.
Cooling - when the set value is exceeded above the set limit, the output contact for cooling is activated.
The fan speed can be controlled in two ways:
Manually - one of the three speeds is set via the switch. In this case, the fan runs continuously.
Automatically - the fan starts when the thermostat is activated. In this case, it is necessary to change the position of the jumper on the thermostat's circuit board before commissioning for regulation.
