Siemens Actuator GLB 161.9E/MO (GLB161.9E/MO)

Siemens Actuator GLB 161.9E/MO (GLB161.9E/MO)

Siemens Actuator GLB 161.9E/MO (GLB161.9E/MO)

SIEMENS
  • Product code: GLB161.9E/MO
  • Manufacturer code: GLB161.9E/MO
  • Warranty: 2 years

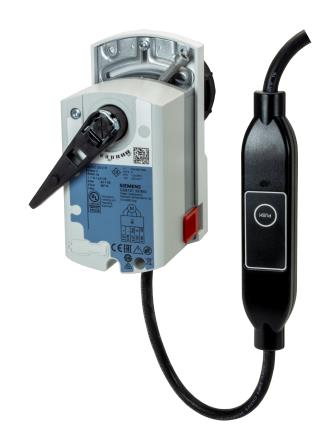

Electromotoric actuator for ball valves Siemens GLB161.9E/MO. Power supply 24 V. With ModBus RTU communication. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 332,19
Price excluding VAT € 205,90
Price with VAT 21 % € 249,14
− +

Trustpilot

Parameters and catalogs

Auxiliary contact 0...5 V
Cable length 0.9 m
Control Modbus RTU
Emergency function 0...25 mbar
Frequency 50/60 Hz
IP Rating IP 54
Power Supply 24 VDC, 24 VAC
Setup time 150 s
Torque 10 Nm
Weight 0.70 kg

Catalog list eng download

Download PDF

Suitable for heating, ventilation, and air conditioning applications.

ModBus RTU control

Standard types with a mechanically adjustable range and direction of rotation switch.

Features

  • Torque 10 Nm, damper size approx. 0.8 m²
  • Lifespan 5,000,000 cycles
  • Rotation angle 90 degrees
  • Adjustment time 150 s
  • Adjustable direction of rotation, protection class IP54
  • Dimensions 137 mm (l) x 68 mm (w) x 59.5 mm (h)
  • ModBus RTU control
  • Power supply 24 VAC/VDC

Advantages

  • Lower noise level
  • Extended lifespan thanks to the new motor
  • Feedback accuracy increased by 50%
  • Energy-saving actuator
  • Reliable operation regardless of load
  • No need for end position switch - remains in place upon reaching the endpoint

Suitable Valves

  • 2- and 3-way control ball valves VAI61.., VBI61.., VAG61.., and VBG61.. in sizes DN 15-25
  • 2- and 3-way ON/OFF and changeover ball valves VAI60.., VBI60.., VAG60.., and VBG60.. in sizes DN 15-25
  • 6-way ball valves VWG41.. in sizes DN 10-20
