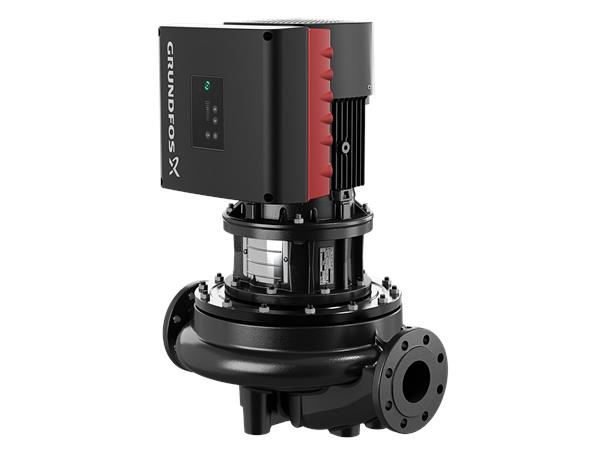

Single-stage dry-running pump Grundfos TPE 65-210/2 AFA-BQQE-JD1 in in-line version with MGE motor More information
Out of stock - can be requested
Would you like to get a price offer? Contact us
| Connection pump size | DN 65 |
| Connection type | Flange |
| Head max | 21 m |
| Port-to-port lenght | 360 mm |
| Power | 230 VAC |
| Pressure | 16 bar |
| Pump flow | 60 m3/h |
| Weight | 79.00 kg |
DATA SHEET download
Download PDFSingle-stage dry-running pump with suction and discharge ports of the same diameter in one axis. The pump has a removable "top-pull-out" top construction (motor, pump head and impeller) can be removed for maintenance or service, while the pump body remains attached to the pipeline.
The pump is equipped with an unbalanced seal with a rubber bellows. The motor includes a frequency converter and a PI controller in the motor terminal block. This enables smooth regulation of the engine speed, thereby adapting its performance to the given operating conditions. The pump is installed with a differential pressure sensor.
The nominal data of the pump are given at 2910 rpm .
