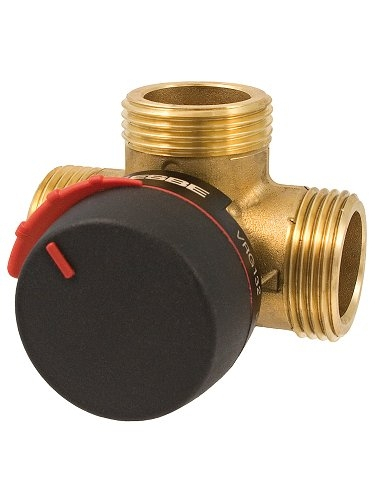

The three-way mixing valve ESBE VRG 132 is made from DZR brass with protection against zinc leaching. The valve is equipped with an adjustable handwheel with a scale, which is additionally fitted with end stops. The valve's operating range is max. 90°. The scale located under the adjustment knob can be positioned anywhere along the rotation path of the mixing valve's core, depending on the valve's orientation in the application.

The valve's nominal diameter is DN 20, but the connection thread is 1".

Examples of Use

• Heating applications
• Cooling
• Underfloor heating
• Solar systems
• Ventilation
• Central distribution systems

The VRG 132 valve can be used either as a mixing or a diverting valve.

Installation Example

Mixing

Diverting

Suitable Actuators

• The complete range of ESBE actuators from the ARA 600 series (adapter included with the actuator).
• ESBE actuator series 90 (including controllers 90C etc.). Must be fitted with VRG 801 adapter - item number 16053300
• VZT actuators BELIMO - any servo (e.g., LM-A, NM-A, LF etc.) can be used in conjunction with adapter type MK-VRG....
• Actuators for mixing fittings BELIMO NRD, HT in conjunction with adapter MS-NRE6.

Service

All main parts can be replaced or resealed - a gasket set or a complete renovation kit is available. In most cases, it is not necessary to remove the valve from the application during servicing.
