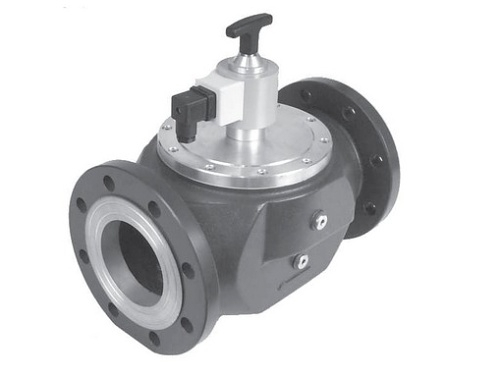

Emergency Solenoid Gas Valve PEVEKO EVH 1100.02/P

Emergency Solenoid Gas Valve PEVEKO EVH 1100.02/P
  • 3 variants

Emergency Solenoid Gas Valve PEVEKO EVH 1100.02/P

PEVEKO
  • Product code: 110003
  • Manufacturer code: EVH 1100.*2/P
  • Warranty: 2 years

Emergency solenoid valve PEVEKO DN100. Suitable for gaseous fuels including propane-butane. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 1 157,85
Price with VAT 27 % € 1 470,47

Product variants

− +

Trustpilot

Parameters and catalogs

Atex Yes
Connection size DN 100
Connection Type Flange
Function Normally open
Gasket NBR
IP Rating IP 54
Medium DN 13
Power Supply 230 VAC
Pressure Medium pressure
Temperature 80 °C
Weight 13.00 kg

Datasheet download

Download PDF

Emergency solenoid valve designed for gaseous fuels with manual control capability. It is used for shutting off low-pressure (5 kPa) or medium-pressure (400 kPa) gas pipeline systems. The valve is designed for manual opening (pulling the valve stem) and electromagnetic closing with an electric impulse. We recommend using dirt filters before the valve.

Features:

  • two-way emergency valve
  • normally open (NO)
  • DN 100 / flange
  • operating overpressure 0-400 kPa
  • suitable for gaseous fuels including propane-butane
  • medium temperature max. 80 °C
  • switching time max. 1s
  • protection rating IP 52

The valve is supplied including the power coil and connector.
