Three-way control valve VXF 42.15-1.6 DN 15. More information
Out of stock - can be requested
| Connection size | DN 15 |
| Connection Type | Flange |
| Flow | 1.6 m3/h |
| Maximum temperature | 150 °C |
| Pressure | PN 16 |
| Temperature | -10...150 °C |
| Type of valve | Mixing, Distributor |
| Weight | 2.60 kg |
Catalog sheet download

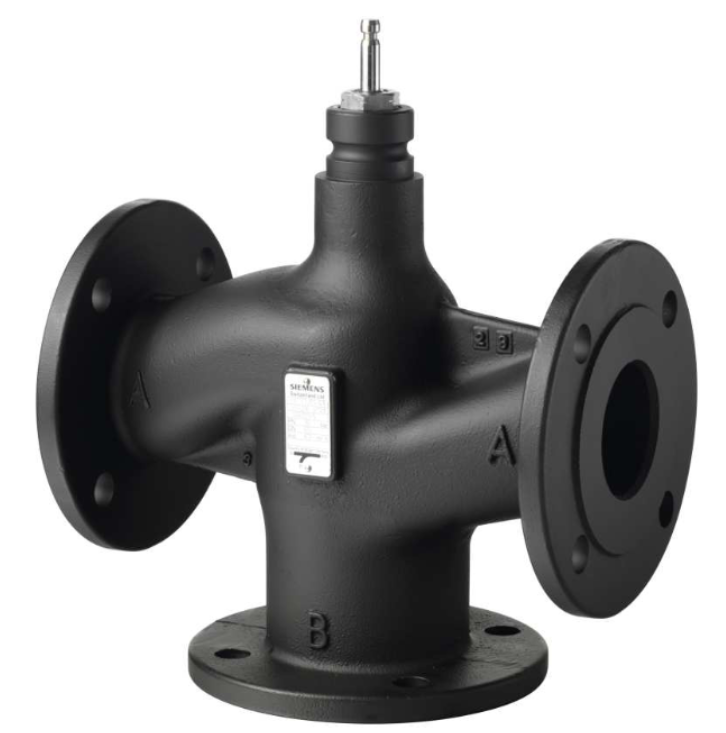

Download PDFThe three-way control valve VXF42... is made of grey cast iron. The valve is suitable for closed circuits. It is applicable in boiler rooms and heating or cooling systems and devices. It is suitable for water. It can be used as a mixing or diverting valve. The stroke force is 20 mm.
The valve is suitable for media in the temperature range of -10...150 °C. If the media temperature falls below 0 °C, spindle heating must be used.
Actuators SAX..., SKD..., SKB..., and SKC... can be connected to the valve.
