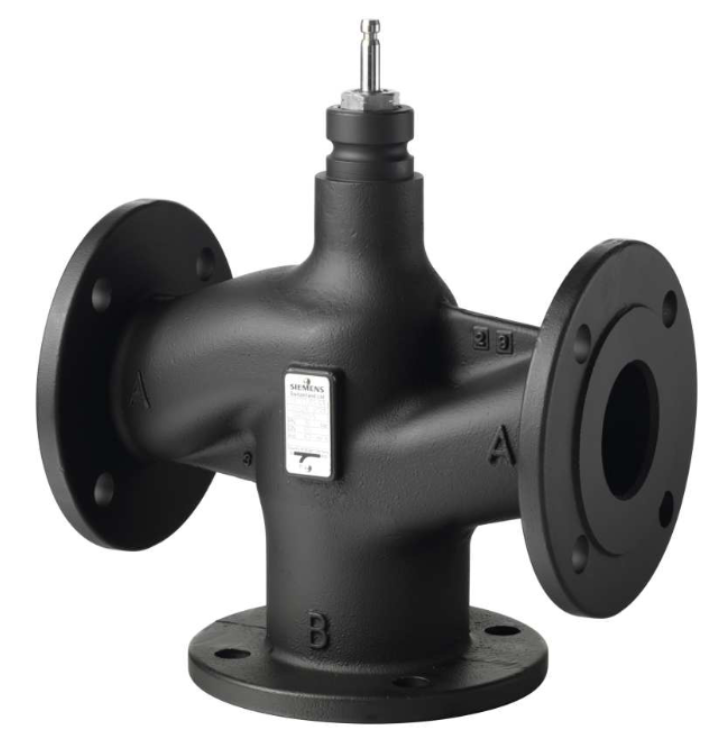

Three-way control valve Siemens VXF 42.15-2.5 (VXF42.15-2.5)

Product code: VXF42.15-2.5
EAN : 7612914087485
Manufacturer code: VXF42.15-2.5
Warranty: 2 years

Three-way control valve VXF 42.15-2.5 DN 15. More information

Availability
Out of stock - can be requested
Out of stock

Parameters and catalogs

Connection size	DN 15
Connection Type	Flange
Flow	2.5 m3/h
Maximum temperature	150 °C
Pressure	PN 16
Temperature	-10...150 °C
Type of valve	Mixing, Distributor
Weight	2.60 kg

Catalog sheet download

Download PDF

The three-way control valve VXF42... is made of grey cast iron. The valve is suitable for closed circuits. It is applicable in boiler rooms and heating or cooling systems and devices. It is suitable for water. It can be used as a mixing or diverting valve. The stroke force is 20 mm.

The valve is suitable for media in the temperature range of -10...150 °C. If the media temperature falls below 0 °C, spindle heating must be used.

Actuators SAX..., SKD..., SKB..., and SKC... can be connected to the valve.
