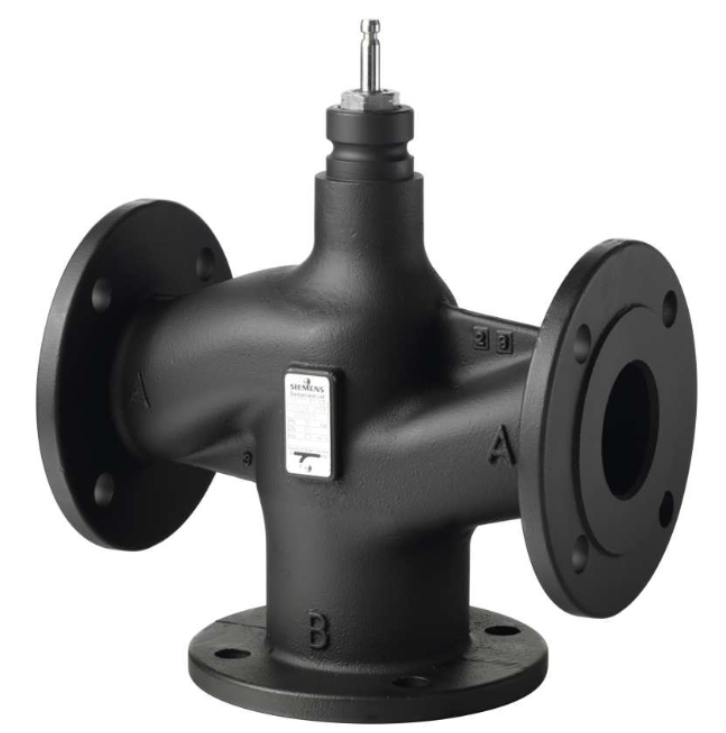

Three-way control valve VXF 53.25-110 DN 25. More information
Out of stock - can be requested
| Connection size | DN 25 |
| Connection Type | Flange |
| Flow | 10 m3/h |
| Maximum temperature | 200 °C |
| Pressure | PN 25 |
| Temperature | -20...200 °C |
| Type of valve | Mixing, Distributor |
| Weight | 4.60 kg |
Catalog sheet download
Download PDFThe three-way control valve VXF53... is made of ductile iron. The valve is suitable for open and closed circuits. It is applicable in heating or cooling systems and devices. It is suitable for liquids and antifreeze mixtures. It can be used as a mixing or diverting valve. The stroke force is 20 mm.
The valve is suitable for media in the temperature range of -20...200 °C. If the media temperature falls below 0 °C, spindle heating is required, and if it drops to -5 °C, the spindle packing needs to be replaced.
Actuators SAX..., SKD..., SKB..., and SKC... can be connected to the valve.
