Two-way control valve Siemens VVF 53.40-25 (VVF53.40-25)

2 variants

Compare
Print
Send to e-mail

Send product by e-mail:Two-way control valve Siemens VVF 53.40-25 (VVF53.40-25)

From email

To email

Additional message

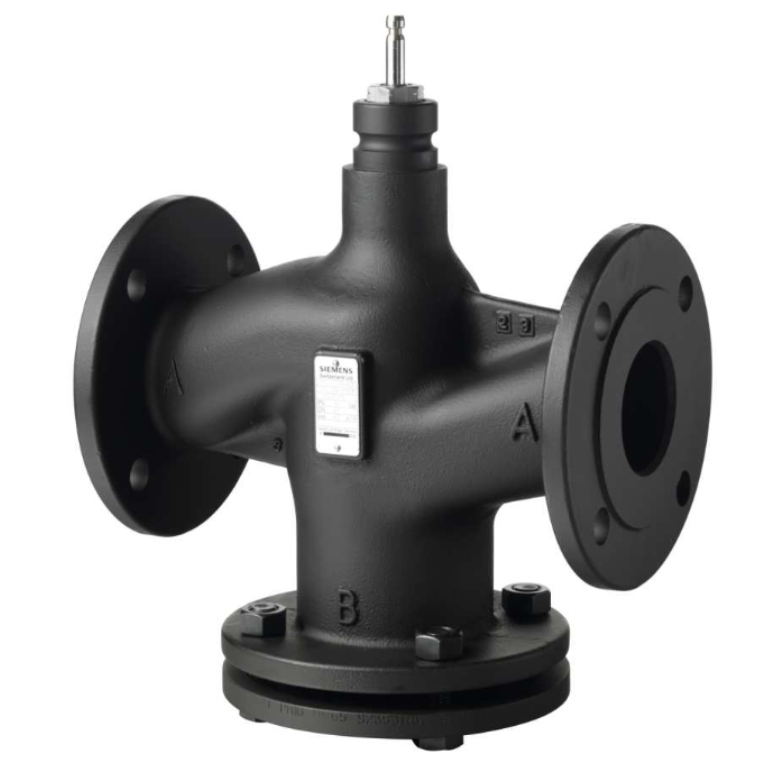

Two-way control valve Siemens VVF 53.40-25 (VVF53.40-25)

Product code: VVF53.40-25
EAN : 7612914079503
Manufacturer code: VVF53.40-25
Warranty: 2 years

Two-way control valve VVF 53.40-25 DN 40. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
2.4 workdays € 0,00

Bpost HD (Home Delivery):
2.7 workdays € 0,00

BPost - PP (Pick-up Point):
3.1 workdays € 0,00

FedEx Priority:
1.7 workdays € 75,38

DHL Express:
1.1 workdays € 81,07

DHL Express: 1.1 workdays, € 81,07
In stock 3 pcs

Parameters and catalogs

Connection Type	Flange
Flow	25 m3/h
Lift	20 mm
Pressure	PN 25
Temperature	-20...220 °C
Type of fitting	Two-way
With actuator	No
Weight	10.11 kg

Catalog sheet download

Download PDF

The two-way control valve VVF53... is made from ductile iron. There is a blind flange at the bottom. The valve is suitable for open and closed circuits. It is applicable in boiler rooms and heating or cooling systems and equipment. It is suitable for liquids, steam, and antifreeze mixtures. It can be used as both a control and shut-off valve.

When used for steam, the valve has a reverse flow direction. If the medium temperature falls below 0 °C, spindle heating is required, and if it drops below -5 °C, the spindle packing needs to be replaced.

Actuators SAX..., SKD..., SKB..., and SKC... can be connected to the valve.
